Series map:
6100
6200
6300
55.9kw
62.6kw
67.1kw
| Transmission options |
| 12-speed fully synchronized |
| 15-speed fully synchronized |
| 16-speed partial power shift |
| 20-speed partial power shift |
| Transmission |
| Transmission | John Deere SyncroPlus
|
| Type | fully synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 225mm wet disc
|
| Three gears (1-3), plus reverse (R), in four ranges (A-D). |
| Transmission |
| Transmission | John Deere SyncroPlus
|
| Type | fully synchronized
|
| Gears | 15 forward and 5 reverse
|
| Clutch | 225mm wet disc
|
| Three gears (1-3), plus reverse (R), in five ranges (A-E). Also available in a 24-speed option with 40 kph maximum speed (depending on sales market). |

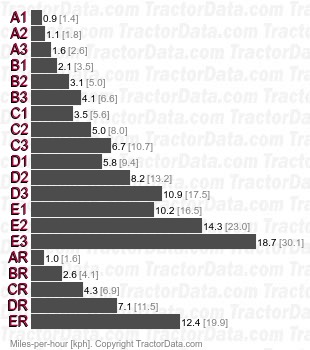

| Speeds |
| With 18.4-38 rear tires. |
|
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 16 forward and reverse
|
| Clutch | 225mm wet disc
|
| Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. |
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 20 forward and reverse
|
| Clutch | 225mm wet disc
|
| Four power shift gears (1-4) in five synchronized ranges (A-E) with power shuttle. Also available in a 24-speed option with 40 kph maximum speed (depending on sales market). |

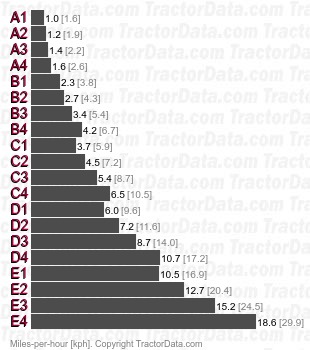

| Speeds |
| With 18.4-38 rear tires. |
|
