John Deere 6520L Engine



John Deere 6520L tractor photo
2002 - 2006
Orchard/Vineyard tractor
Series map:
6420L
6520L
110.0hp
105.6hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere PowerTech 4045HL071
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier I
Air cleanerdry
Rated RPM2300
Idle RPM875-2510
Operating RPM1000-2300
Torque289 lb-ft
391.9 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity14.4 qts
13.6 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

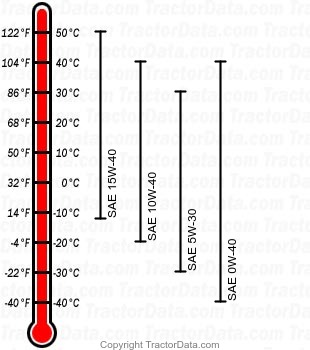

6520L diesel engine oil chart
Oil capacity16.8 qts
15.9 L
Oil change500 h
Engine Detail
John Deere PowerTech 4045HL273
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Air cleanerdry
Rated RPM2300
Idle RPM845-2465
Operating RPM1000-2300
Torque350 lb-ft
474.6 Nm
Torque RPM1500
Firing order1-3-4-2
Coolant capacity14.4 qts
13.6 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil
6520L diesel engine oil chart
Oil capacity16.8 qts
15.9 L
Oil change500 h
