John Deere 6320L

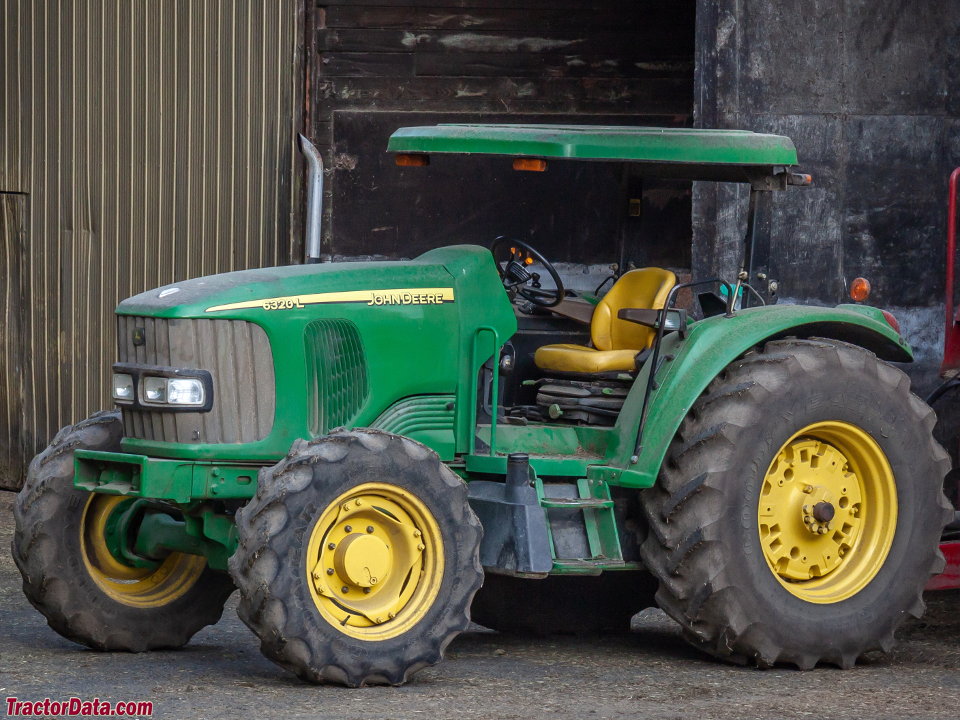

John Deere 6320L tractor photo
2002 - 2006
Orchard/Vineyard tractor
Series map:
6220L
6320L
6420L
90.0hp
99.0hp
110.0hp
Production
ManufacturerJohn Deere
Orchard/Vineyard tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price$40,400 (2007)
Variants
6320utility chassis
6320Llow-profile chassis
John Deere 6320L Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6320L Transmissions
12-speed fully synchronized
16-speed power shuttle
16-speed partial power shift
24-speed partial power shift
Transmission details ...
John Deere 6320L Power
Engine100 hp
74.6 kW
PTO (claimed)80 hp
59.7 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Hydraulic wet disc brakes
OPS. Cab optional.
Capacity
Fuel43.6 gal
165.0 L
 30.7 gal (optional for ground clearance)
116.2 L
Hydraulic system13.7 gal (SyncroPlus)
51.9 L
 12.9 gal (PowrQuad 16)
48.8 L
 13.2 gal (PowrQuad 24)
50.0 L
Hydraulics
Typepressure and flow compensated
Capacity13.7 gal (SyncroPlus)
51.9 L
 12.9 gal (PowrQuad 16)
48.8 L
 13.2 gal (PowrQuad 24)
50.0 L
Pressure2900 psi
200.0 bar
Pump flow25 gpm
94.6 lpm
Tractor hitch
Rear TypeII
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/1000 (optional)
Dimensions & Tires
Weight8,004 lbs
3630 kg
Front tire27/9.5-15
Rear tire16.9-24 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging volts14
Battery volts12
