John Deere 6320L Transmission
|
|
| Transmission options | |
| 12-speed fully synchronized | |
| 16-speed power shuttle | |
| 16-speed partial power shift | |
| 24-speed partial power shift |
| Transmission | |||
| Transmission | John Deere SyncroPlus | ||
| Type | fully synchronized | ||
| Gears | 12 forward and 4 reverse | ||
| Clutch | wet disc | ||
| Oil capacity | 55 qts 52.1 L | ||
| Oil type |
| ||
| Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds (ranges A-C) for a total of 21-forward and 7-reverse. | |||

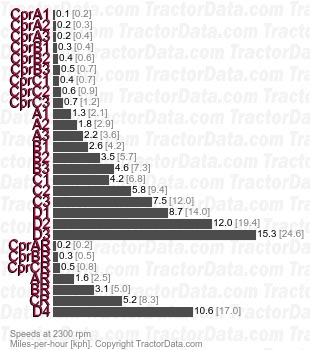

| Speeds | |
| With 16.9x24 R1 rear tires. | |
|
| Transmission | |||
| Transmission | John Deere SyncroPlus Power Reverser | ||
| Type | power shuttle | ||
| Gears | 16 forward and reverse | ||
| Clutch | wet disc | ||
| Oil capacity | 55 qts 52.1 L | ||
| Oil type |
| ||
| Four gears (1-4) in four ranges (A-D) with left-hand reverser. Gear and range shifts are synchronized. Power shuttle shifting between forward and reverse. Only available on open-station (ROPS) equipped tractors. | |||

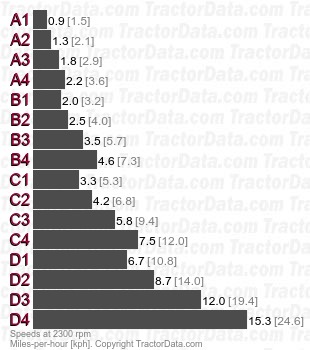

| Speeds | |
| With 16.9x24 R1 rear tires. | |
|
| Transmission | |||
| Transmission | John Deere PowrQuad | ||
| Type | partial power shift | ||
| Gears | 16 forward and reverse | ||
| Clutch | wet disc | ||
| Oil capacity | 51.8 qts 49.0 L | ||
| Oil type |
| ||
| Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional 12 speeds for 28 forward and reverse (ranges A-C). The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting. | |||

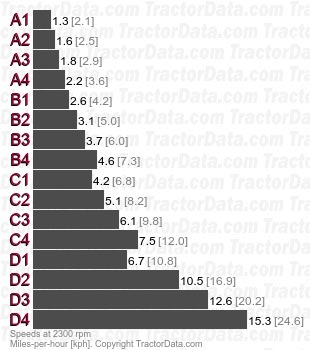

| Speeds | |
| With 16.9x24 R1 rear tires. | |
|
| Transmission | |||
| Transmission | John Deere PowrQuad Plus | ||
| Type | partial power shift | ||
| Gears | 24 forward and reverse | ||
| Clutch | wet disc | ||
| Oil capacity | 52.8 qts 50.0 L | ||
| Oil type |
| ||
| Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch. | |||
| Speeds | |
| With 16.9x24 R1 rear tires. | |
|
