John Deere 6220L Engine


John Deere 6220L tractor photo
2002 - 2006
Orchard/Vineyard tractor
Series map:
6120L
6220L
6320L
84.0hp
90.0hp
99.0hp
Engine Detail
John Deere PowerTech 4045TL071
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier I
Power90 hp
67.1 kW
Air cleanerdry
Rated RPM2300
Idle RPM875-2510
Operating RPM1000-2300
Torque220 lb-ft
298.3 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity14.4 qts
13.6 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

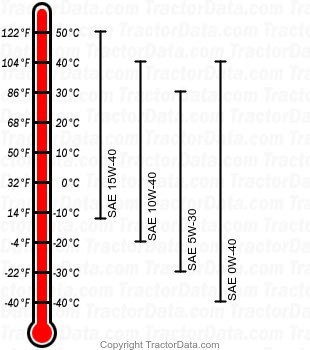

6220L diesel engine oil chart
Oil capacity16.8 qts
15.9 L
Oil change500 h
Engine Detail
John Deere PowerTech 4045TL272
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Power90 hp
67.1 kW
Air cleanerdry
Rated RPM2300
Idle RPM845-2465
Operating RPM1000-2300
Torque281 lb-ft
381.0 Nm
Torque RPM1500
Firing order1-3-4-2
Coolant capacity14.4 qts
13.6 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil
6220L diesel engine oil chart
Oil capacity16.8 qts
15.9 L
Oil change500 h
