John Deere 1026R
| | 2011 - 2013 |
| 1 Sub-Compact Series | | Sub-Compact Utility tractor |
|
Series map:
1023E
1026R
23.5hp
25.2hp
| Production |
| Manufacturer | John Deere
|
| Sub-Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price was $12,595 in 2011 |
| John Deere 1026R Power |
| Engine (gross) | 25.2 hp
18.8 kW
|
| Engine (net) | 23.8 hp
17.7 kW
|
| PTO (claimed) | 18 hp
13.4 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanial rear
|
| Power steering |
| Disc brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 5.6 gal
21.2 L
|
| Hydraulic system | 3.25 gal
12.3 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3.25 gal
12.3 L
|
| Pressure | 2000 psi
137.9 bar
|
| Valves | 2 to 3
|
| Total flow | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type | Limited I
|
| Control | position control
|
| Rear lift (at ends) | 1433 lbs
650 kg
|
| Rear lift (at 24"/610mm) | 681 lbs
308 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Engine RPM | 540@3200
|
| Mid PTO | independent
|
| Mid PTO Type | 2100
|
| Engine RPM | 2100@3200
|

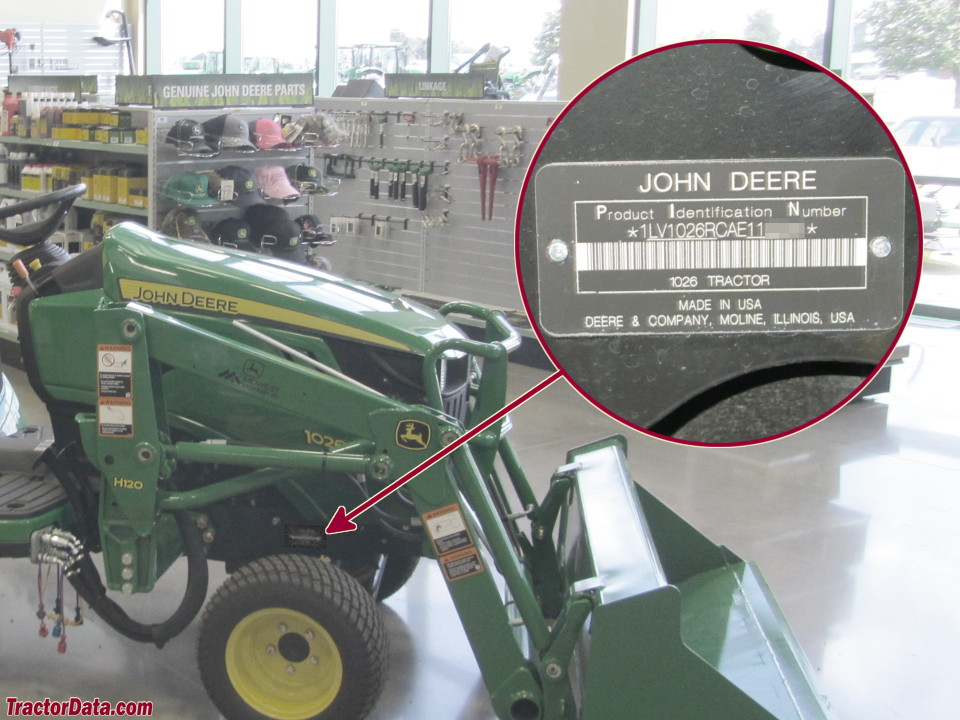

| 1026R Serial Number Location |
 |
| Serial number plate on the right side of main tractor frame above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 500
|
| Battery volts | 12
|
