John Deere 1023E
| | 2011 - 2025 |
|
| 1 Sub-Compact Series | | Sub-Compact Utility tractor |
|
Series map:
1023E
1026R
23.5hp
25.2hp
| Production |
| Manufacturer | John Deere
|
| Sub-Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price | $11,296 (2011 )
|
| $12,062 (2017 )
|
| John Deere 1023E Power |
| Engine (gross) | 23.5 hp
17.5 kW
|
| PTO (claimed) | 15.3 hp
11.4 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | standard
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 5.6 gal
21.2 L
|
| Hydraulic system | 3.25 gal
12.3 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3.25 gal
12.3 L
|
| Pressure | 2000 psi
137.9 bar
|
| Valves | 2 to 3
|
| Total flow | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type | Limited I
|
| Rear lift (at ends) | 1,433 lbs
650 kg
|
| Rear lift (at 24"/610mm) | 681 lbs
308 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Engine RPM | 540@3200
|
| Mid PTO | independent
|
| Mid PTO Type | 2100
|
| Engine RPM | 2100@3200
|

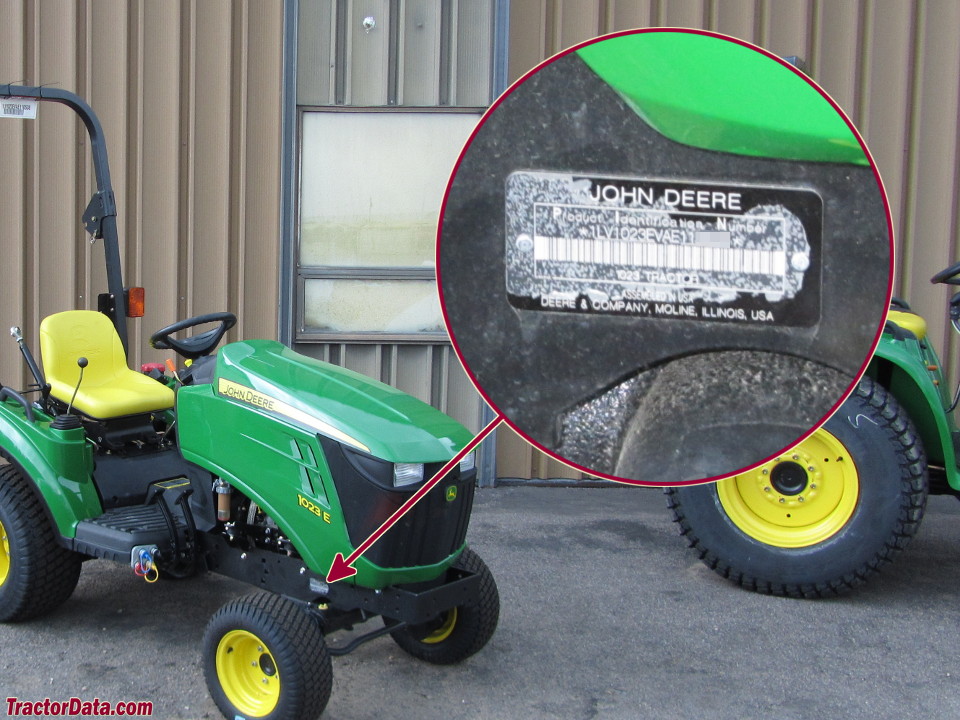

| 1023E Serial Number Location |
 |
| On main tractor frame above the right-side front wheel. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| 1 Series published in 2012, by John Deere |
