Kubota L3800 Transmission


Kubota L3800 tractor photo
2011 - 2014
Standard L Series
Compact Utility tractor
Series map:
L3200
L3800
L4600
31.9hp
37.4hp
46.3hp
Transmission options
8-speed constant mesh gear
hydrostatic
Transmission
Typeconstant mesh gear
Gears8 forward and 4 reverse
Clutchdry
Speeds
With 11.2-24 R1 rear tires.
L3800  constant mesh gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity24.8 qts
23.5 L
Speeds
With 11.2-24 R1 rear tires.

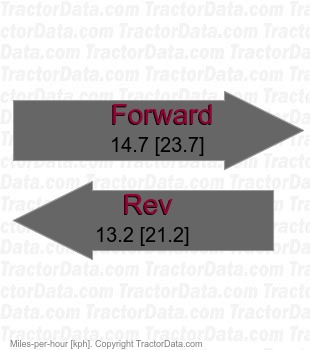

L3800  hydrostatic speeds
