John Deere 3300 Transmission


John Deere 3300 tractor photo
1995 - 1998
Utility tractor
Renault built
Series map:
3200
3300
3400
48.5kw
55.9kw
63.4kw
Transmission options
10-speed synchronized
20-speed synchronized
20-speed two-speed power shift
Transmission
Typesynchronized
Gears10 forward and reverse
Five synchronized gears in two ranges with synchronized shuttle.
Speeds

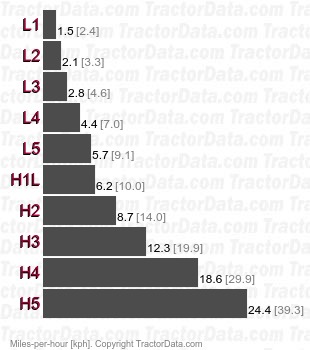

3300  synchronized speeds
Transmission
Typesynchronized
Gears20 forward and reverse
Optional mechanical splitter doubles the numbers of speeds in the base transmission. Clutch must be used with mechanical splitter. Also available with an optional creeper range, providing 30 total speeds in each direction.
Speeds

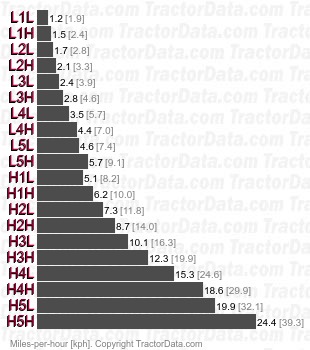

3300  synchronized speeds
Transmission
TransmissionTwinshift
Typetwo-speed power shift
Gears20 forward and reverse
The Twinshift provides a push-button splitter to the base transmission.
Speeds
3300 Twinshift two-speed power shift speeds
