Tractors > New Holland > T9.560

New Holland T9.560 Tests



New Holland T9.560 tractor photo
2011 - 2014
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.505
T9.560
T9.615
457.0hp
507.0hp
542.0hp
OCED Tractor Test 2015

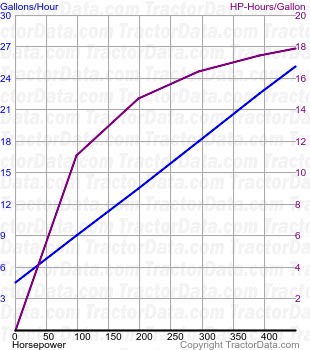

T9.560 fuel use from test 797
OCED Tractor Test 2015
Diesel 16-speed 4WD
November 30, 2011 - January 5, 2012
Link: OCED Tractor Test 2015 file
PTO performance
Max power499.16 hp
372.2 kW
Fuel use27.3 gal/hour
103.3 l/hour
Power at rated engine speed449.16 hp
334.9 kW
Fuel use25.1 gal/hour
95.0 l/hour
Power at rated PTO speed480.66 hp
358.4 kW
Fuel use26.3 gal/hour
99.5 l/hour
Drawbar performance
Max power392.34 hp
292.6 kW
Fuel use25.2 gal/hour
95.4 l/hour
Gear 5 used for power test.
Max pull35703 lbs
16194 kg
Gear 3 used for pull test.
