Tractors > New Holland > T9.505

New Holland T9.505 Tests



New Holland T9.505 tractor photo
2011 - 2014
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.450
T9.505
T9.560
405.0hp
457.0hp
507.0hp
OCED Tractor Test 2009A

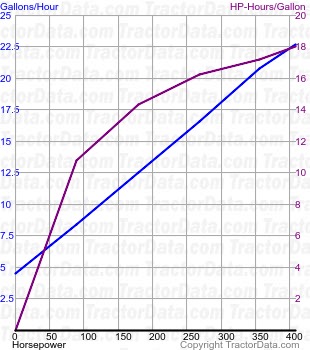

T9.505 fuel use from test 792A
OCED Tractor Test 2009A
Diesel 16-speed 4WD
November 10 - 21, 2011
Link: OCED Tractor Test 2009A file
PTO performance
Max power451.28 hp
336.5 kW
Fuel use23.8 gal/hour
90.1 l/hour
Power at rated engine speed407.70 hp
304.0 kW
Fuel use22.6 gal/hour
85.5 l/hour
Power at rated PTO speed436.66 hp
325.6 kW
Fuel use23.5 gal/hour
88.9 l/hour
Drawbar performance
Max power365.60 hp
272.6 kW
Fuel use22.7 gal/hour
85.9 l/hour
Gear 5 used for power test.
Max pull39131 lbs
17749 kg
Gear 2 used for pull test.
