New Holland T8.330
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| Variants | |
| Magnum 290 | similar CaseIH model |
| New Holland T8.330 Engine | |
| FPT 8.7L 6-cyl diesel | |
| Fuel tank | 168 gal 635.9 L |
| Exhaust fluid (DEF) | 24 gal 90.8 L |
 Engine details ... | |
| New Holland T8.330 Transmissions | |
| 19-speed full power shift | |
| 18-speed full power shift | |
| 23-speed creeper | |
 Transmission details ... |
| New Holland T8.330 Power | |
| Engine (gross) | 284 hp 211.8 kW |
| Engine (max) | 313 hp 233.4 kW |
| PTO (claimed) | 240 hp 179.0 kW |
| Drawbar (tested) | 213.64 hp 159.3 kW |
| PTO (tested) | 300.90 hp 224.4 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard. |

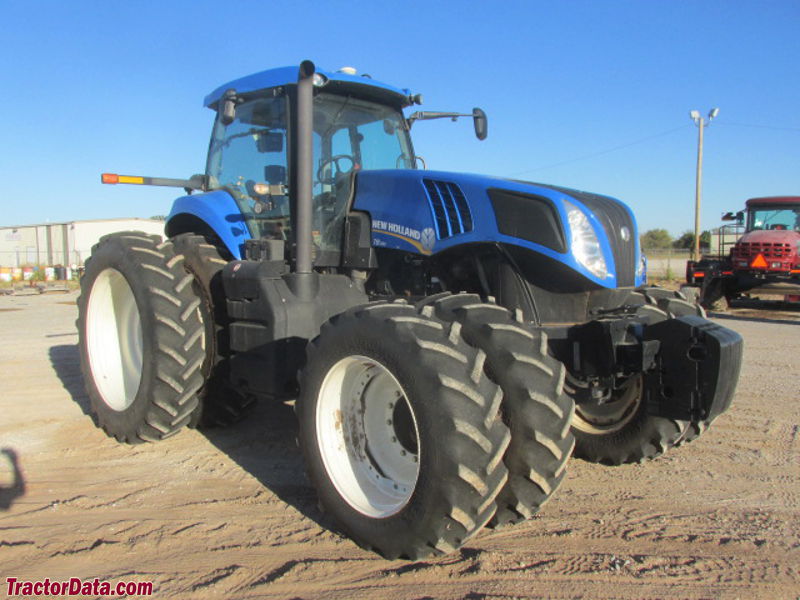

| Photos | |
 | |
 New Holland T8.330 photos... | |
| Hydraulics | |
| Type | closed center load sensing |
| Rear valves | 4 to 6 |
| Pump flow | 35 gpm 132.5 lpm |
| Total flow | 42.5 gpm 160.9 lpm |
| 72.3 gpm (MegaFlow) 273.7 lpm | |
| Tractor hitch | |
| Rear Type | III/IIIN |
| Rear lift | 15183 lbs 6887 kg |
| 17931 lbsOptOptional 8133 kg | |
| Front Hitch | optional |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@1804 |
| 1000@1804 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 135.8 inches 344 cm |
| Weight | 24480 to 25280 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Charging volts | 12 |
| Batteries | 2 |
| Battery volts | 12 |
| References | |
 | |
| T8 Series Tractors published in 2011, by New Holland | |
| T8 published in 2013, by New Holland |
