CaseIH Puma 160
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| CaseIH Puma 160 Engine | |
| FPT 6.7L 6-cyl diesel | |
 Engine details ... |
| CaseIH Puma 160 Transmissions | |
| 18-speed full power shift | |
| 19-speed full power shift | |
| continuously variable transmission (CVT) | |
 Transmission details ... |
| CaseIH Puma 160 Power | |
| Engine (gross) | 160 hp 119.3 kW |
| Engine (max) | 203 hp 151.4 kW |
| PTO (claimed) | 135 hp 100.7 kW |
| Drawbar (tested) | 118.5 hp 88.4 kW |
| PTO (tested) | 155.8 hp 116.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Cab standard. Optional cab suspension. |

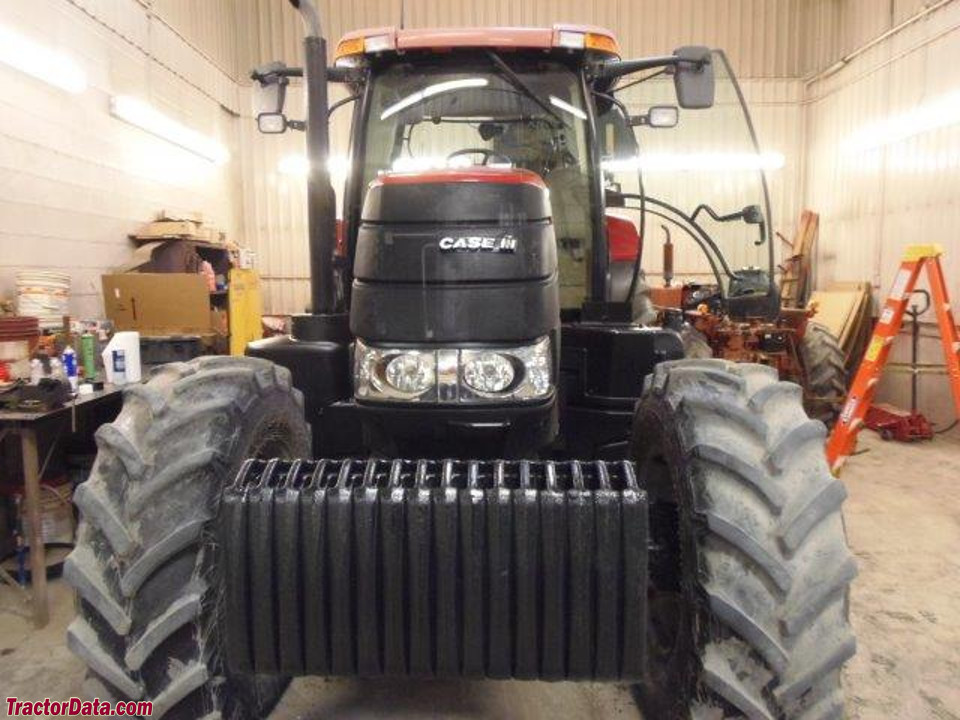

| Photos | |
 | |
 CaseIH Puma 160 photos... | |
| Capacity | |
| Fuel | 86 gal 325.5 L |
| Exhaust fluid (DEF) | 12.7 gal 48.1 L |
| Hydraulic system | 20.5 gal 77.6 L |
| Hydraulics | |
| Type | closed center pressure flow compensating (PFC) |
| Capacity | 20.5 gal 77.6 L |
| Rear valves | 3 to 4 (mechanical) |
| 3 to 5 (electronic) | |
| Pump flow | 29 gpm 109.8 lpm |
| 32 gpm (optional) 121.1 lpm | |
| Tractor hitch | |
| Rear Type | 2/3N |
| Rear lift | 7,900 lbs 3583 kg |
| 9,200 lbs (optional) 4173 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.75) |
| Dimensions & Tires | |
| Wheelbase | 107.6 inches 273 cm |
| 109.8 inches (suspended front axle) 278 cm | |
| Weight | 16360 lbs 7420 kg |
 Full dimensions and tires ... | |
| CaseIH Puma 160 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| 200 OptOptional | |
| Batteries | 2 |
| Battery CCA | 650 |
| Battery volts | 12 |
| References | |
 | |
| Puma Series Tractors published in 2010, by CaseIH | |
| Puma Series Tractors published in 2011, by CaseIH |
