CaseIH Puma 130
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| CaseIH Puma 130 Engine | |
| FPT 6.7L 6-cyl diesel | |
 Engine details ... |
| CaseIH Puma 130 Transmissions | |
| 18-speed full power shift | |
| 19-speed full power shift | |
| continuously variable transmission (CVT) | |
 Transmission details ... |
| CaseIH Puma 130 Power | |
| Engine (gross) | 131 hp 97.7 kW |
| Engine (max) | 171 hp 127.5 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 98.4 hp 73.4 kW |
| PTO (tested) | 134.6 hp 100.4 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Cab standard. Optional cab suspension. |
| Photos | |
| No photos of the CaseIH Puma 130 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Capacity | |
| Fuel | 71 gal 268.7 L |
| 86 gal (optional) 325.5 L | |
| Exhaust fluid (DEF) | 12.7 gal 48.1 L |
| Hydraulic system | 19.5 gal 73.8 L |
| Hydraulics | |
| Type | closed center pressure flow compensating (PFC) |
| Capacity | 19.5 gal 73.8 L |
| Rear valves | 3 to 4 (mechanical) |
| 3 to 5 (electronic) | |
| Pump flow | 29 gpm 109.8 lpm |
| 32 gpm (optional) 121.1 lpm | |
| Tractor hitch | |
| Rear Type | 2/3N |
| Rear lift | 7,900 lbs 3583 kg |
| 9,200 lbs (optional) 4173 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 107.6 inches 273 cm |
| 109.8 inches (suspended front axle) 278 cm | |
| Weight | 13600 lbs 6168 kg |
 Full dimensions and tires ... | |
| CaseIH Puma 130 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| 200 OptOptional | |
| Batteries | 2 |
| Battery CCA | 650 |
| Battery volts | 12 |
| References | |
 | |

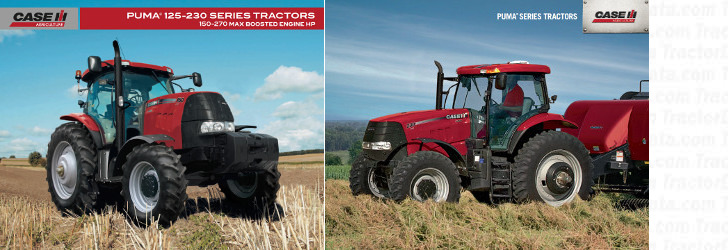

| Puma Series Tractors published in 2010, by CaseIH | |
| Puma Series Tractors published in 2011, by CaseIH |
