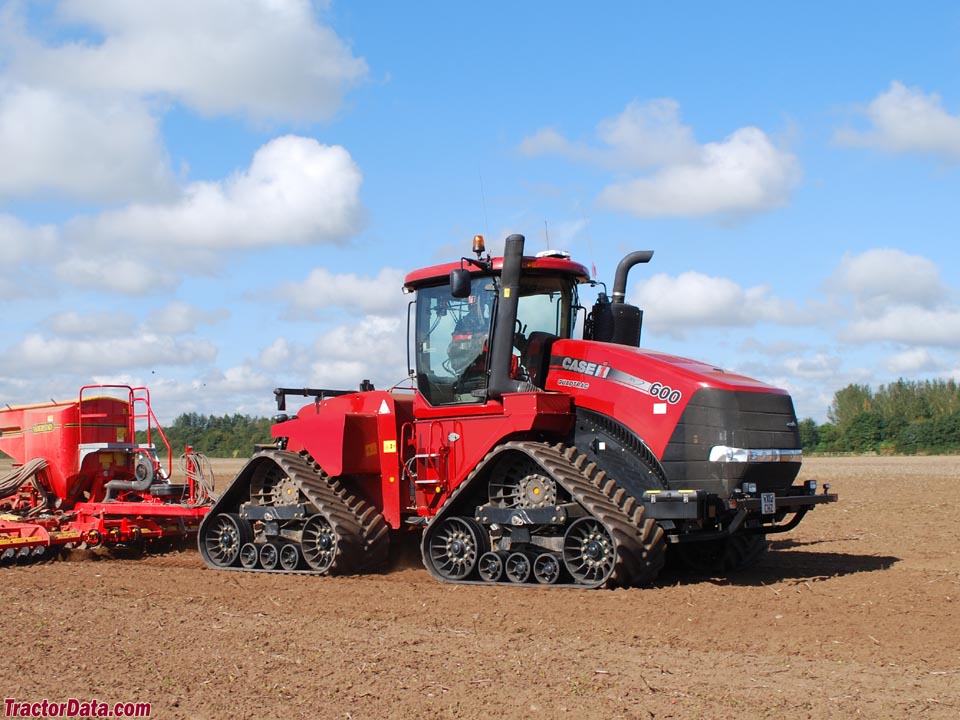

CaseIH Steiger 600 Quadtrac
|
|
| Production | |
| Manufacturer | CaseIH |
| Articulated Crawler tractor | |
| Built in Fargo, North Dakota, USA | |
| CaseIH Steiger 600 Quadtrac Engine | |
| Iveco 12.9L 6-cyl diesel | |
| Fuel tank | 470 gal 1779.0 L |
| Exhaust fluid (DEF) | 64 gal 242.2 L |
 Engine details ... | |
| CaseIH Steiger 600 Quadtrac Transmission | |
| 16-speed full power shift | |
 Transmission details ... |
| CaseIH Steiger 600 Quadtrac Power | |
| Engine | 600 hp 447.4 kW |
| PTO (claimed) | 520 hp 387.8 kW |
| Drawbar (tested) | 476.39 hp 355.2 kW |
| PTO (tested) | 535.88 hp 399.6 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | articulated crawler |
| Steering | hydraulic power |
| Surveyor cab standard. | |
| Hydraulics | |
| Type | closed center pressure flow compensated (PFC) |
| Rear valves | 4 to 8 |
| SCV flow | 35 gpm 132.5 lpm |
| Total flow | 42 gpm 159.0 lpm |
| 56 gpm (High Flow) 212.0 lpm | |
| 113 gpm (Twin Flow) 427.7 lpm | |
| Tractor hitch | |
| Rear Type | 4N |
| Rear lift | 19,728 lbs 8948 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1-3/4) |
| Dimensions & Tracks | |
| Wheelbase | 154 inches 391 cm |
| Weight | 53,804 lbs 24405 kg |
| Tracks | |
 Full dimensions and tracks ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 1000 |
| Battery volts | 12 |
| References | |
 | |
| Steiger Series Tractors published in 2011, by CaseIH |
