Tractors > CaseIH > Steiger 500

CaseIH Steiger 500 Tests



CaseIH Steiger 500 tractor photo
2011 - 2023
Model year
Four-wheel Drive (4WD) tractor
Series map:
Steiger 450
Steiger 500
Steiger 550
450.0hp
500.0hp
550.0hp
OCED Tractor Test 2010

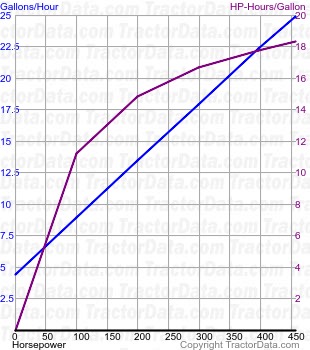

Steiger 500 fuel use from test 793
OCED Tractor Test 2010
Diesel 16-speed 4WD
November 15 - 29, 2011
Link: OCED Tractor Test 2010 file
PTO performance
Max power508.03 hp
378.8 kW
Fuel use26.9 gal/hour
101.8 l/hour
Power at rated engine speed456.09 hp
340.1 kW
Fuel use24.9 gal/hour
94.2 l/hour
Power at rated PTO speed488.61 hp
364.4 kW
Fuel use26.1 gal/hour
98.8 l/hour
Drawbar performance
Max power411.08 hp
306.5 kW
Fuel use24.9 gal/hour
94.2 l/hour
Gear 5 used for power test.
Max pull46670 lbs
21169 kg
Gear 2 used for pull test.
