Tractors > CaseIH > Magnum 315

CaseIH Magnum 315 Tests



CaseIH Magnum 315 tractor photo
2011 - 2013
Magnum Series
Row-Crop tractor
Series map:
Magnum 290
Magnum 315
Magnum 340
284.0hp
312.0hp
340.0hp
OCED Tractor Test 2020

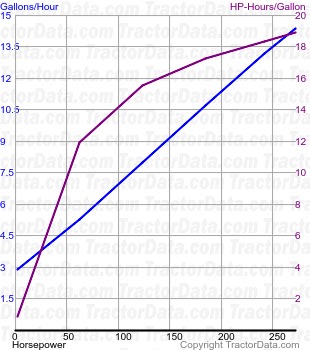

Magnum 315 fuel use from test 819
OCED Tractor Test 2020
Diesel 18-speed 4WD
April 12 - 18, 2012
Link: OCED Tractor Test 2020 file
PTO performance
Max power315.72 hp
235.4 kW
Fuel use15.8 gal/hour
59.8 l/hour
Power at rated engine speed271.45 hp
202.4 kW
Fuel use14.4 gal/hour
54.5 l/hour
Power at rated PTO speed315.72 hp
235.4 kW
Fuel use15.8 gal/hour
59.8 l/hour
Drawbar performance
Max power231.39 hp
172.5 kW
Fuel use14.4 gal/hour
54.5 l/hour
Gear 8 used for power test.
Max pull24551 lbs
11136 kg
Gear 5 used for pull test.
