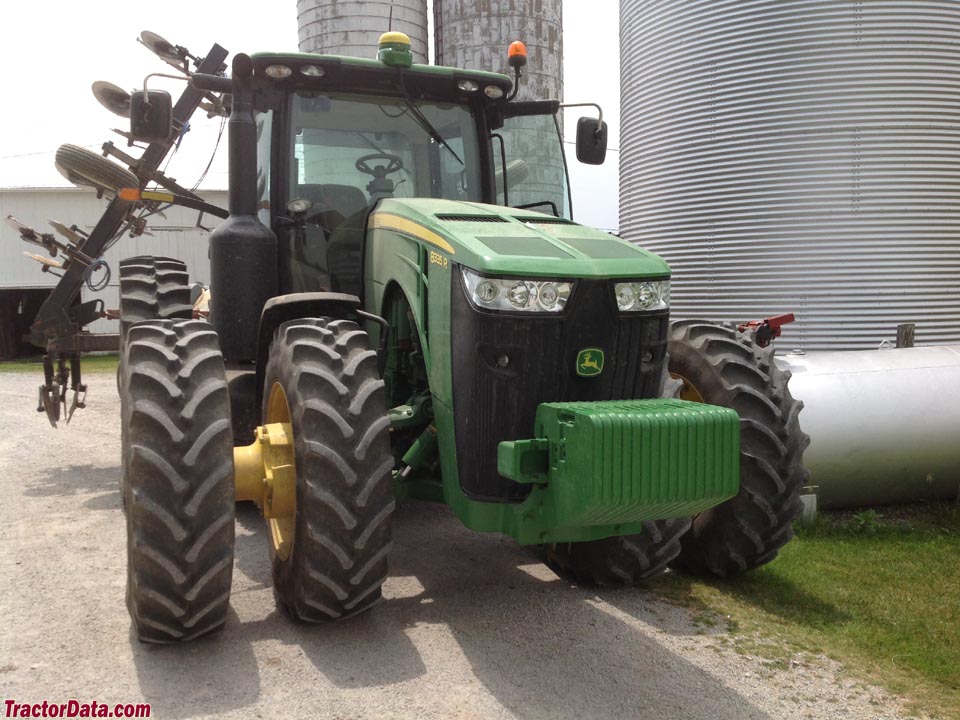

John Deere 8335R
| | 2011 - 2013 |
| 8R Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Original price | $271,495 (2011)
|
| Three-point hitch capacity on the John Deere 8335R increased by four-hundred pounds for the 2012 model year. |
| John Deere 8335R Power |
| Engine (gross) | 335 hp
249.8 kW
|
| Engine (max) | 369 hp
275.2 kW
|
| PTO (claimed) | 283 hp
211.0 kW
|
| Drawbar (tested) | 267.80 hp
199.7 kW
|
| PTO (tested) | 339.73 hp
253.3 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Differential lock | front and rear lock
|
| Steering | hydrostatic power
|
| | ActiveCommand Steering optional (ACS)
|
| Differential hydraulic wet disc brakes |
| Trailer brakes | hydraulic and air optional
|
| CommandView II cab standard with heat and air-conditioning. |
| Hydraulics |
| Type | closed center pressure-flow compensated
|
| Pressure | 2900 psi
200.0 bar
|
| Rear valves | 3 to 5
|
| Pump flow | 35 gpm
132.5 lpm
|
| Total flow | 60 gpm
227.1 lpm
|
| Tractor hitch |
| Rear Type | 4N/3
|
| Rear lift (at 24"/610mm) | 18,300 lbs (2011)
8300 kg
|
| | 18,700 lbs (2012)
8482 kg
|
| Front Hitch | 3N/2 (optional)
|
| Front lift (at ends) | 8,800 lbs
3991 kg
|
| | 11,450 lbs
5193 kg
|
| | 12,300 lbs
5579 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1-3/4)
|
| | 1000 (1-3/8 optional)
|
| | 540 (1-3/8 optional)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| Batteries | 2
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 8235R, 8260R, 8285R, 8310R, 8335R and 8360R Tractors (OMRE317037) published in 2011 |
| Operator's Manual 8235R, 8260R, 8285R, 8310R, 8335R and 8360R Tractors (OMRE564172) published in 2013 |
