John Deere 8235R
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| Original price | $182,672 (2011) |
| For the 2012 model year the three-point hitch lift capacity on the John Deere 8235R was increased by several hundred pounds. | |
| John Deere 8235R Engine | |
| John Deere 9.0L 6-cyl diesel | |
| Fuel tank | 183.6 gal 694.9 L |
 Engine details ... | |
| John Deere 8235R Transmissions | |
| 16-speed full power shift | |
| infinitely variable transmission (IVT) | |
 Transmission details ... |
| John Deere 8235R Power | |
| Engine (gross) | 235 hp 175.2 kW |
| Engine (max) | 259 hp 193.1 kW |
| Rear PTO (claimed) | 192 hp 143.2 kW |
| Front PTO (claimed) | 150 hp 111.9 kW |
| Drawbar (tested) | 180.59 hp 134.7 kW |
| PTO (tested) | 235.14 hp 175.3 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | hydraulic rear lock |
| front lock on 1500 and ILS front axles | |
| Steering | hydrostatic power |
| ActiveCommand Steering optional (ACS) | |
| Differential hydraulic wet disc brakes | |
| Trailer brakes | hydraulic and air optional |
| CommandView II cab standard with heat and air-conditioning. | |
| Photos | |
 | |
 John Deere 8235R photos... | |
| Hydraulics | |
| Type | closed center pressure-flow compensated |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | 3 to 5 |
| Pump flow | 35 gpm 132.5 lpm |
| Total flow | 44 gpm 166.5 lpm |
| 60 gpm (optional) 227.1 lpm | |
| Tractor hitch | |
| Rear Type | 3/3N |
| 4N/3 | |
| Rear lift (at 24"/610mm) | 13,300 lbs (3/3N 2011) 6032 kg |
| 17,300 lbs (3/3N 2011) 7847 kg | |
| 18,300 lbs (4N/3 2011) 8300 kg | |
| 13,600 lbs (3/3N 2012) 6168 kg | |
| 17,600 lbs (3/3N 2012) 7983 kg | |
| 18,700 lbs (4N/3 2012) 8482 kg | |
| Front Hitch | 3N/2 (optional) |
| Front lift (at ends) | 8,800 lbs 3991 kg |
| 11,450 lbs 5193 kg | |
| 12,300 lbs 5579 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1-3/4) |
| 1000 (1-3/8 optional) | |
| 540 (1-3/8 optional) | |
| Dimensions & Tires | |
| Wheelbase | 126.7 inches (2WD) 321 cm |
| 120.1 inches (1300 MFWD) 305 cm | |
| 118.9 inches (1500/ILS) 302 cm | |
| Weight | 27218 to 30252 pounds |
| Front tire | 11.00-24 |
| Rear tire | 480/80R46 |
 Full dimensions and tires ... | |
| John Deere 8235R attachments | |
| front-end loader | |
 Attachment details ... |

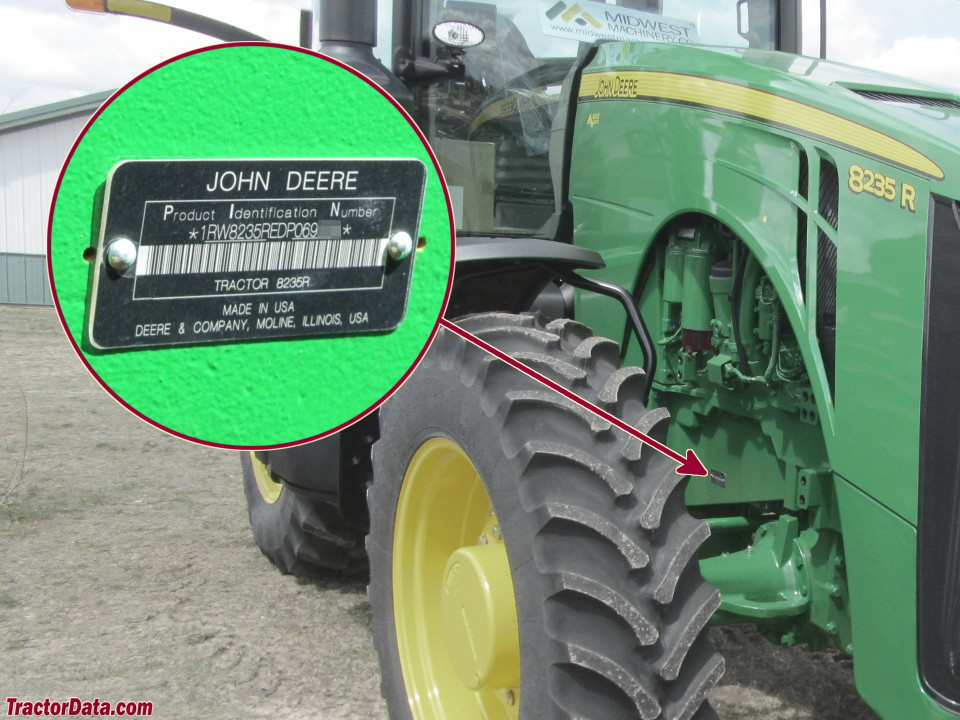

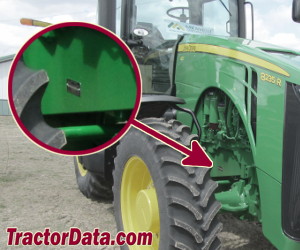

| 8235R Serial Number Location | |
 | |
| Front-right of tractor frame, above front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
| References | |
 | |
| Operator's Manual 8235R, 8260R, 8285R, 8310R, 8335R and 8360R Tractors (OMRE317037) published in 2011 | |
| Operator's Manual 8235R, 8260R, 8285R, 8310R, 8335R and 8360R Tractors (OMRE564172) published in 2013 |
