John Deere 8235R Transmission


John Deere 8235R tractor photo
2011 - 2013
8R Series
Row-Crop tractor
Series map:
8235R
8260R
235.0hp
260.0hp
Transmission options
16-speed full power shift
infinitely variable transmission (IVT)
Transmission
TransmissionJohn Deere Automatic PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Automatic PowerShift uses computer control to shift based on load up to the highest selected gear. Fifth reverse is optional through dealer re-programming.
Speeds
With Group 47 rear tires. Speed R3 is at 2300 RPM and R4 is at 1500 RPM.
8235R Automatic PowerShift full power shift speeds
Transmission
TransmissionJohn Deere AutoPowr
Typeinfinitely variable transmission (IVT)
Gearsinfinite forward and reverse
IVT available with right- or left-hand reverser.
Speeds
The AutoPowr/IVT is available with 50 km/h top speeds with ILS.

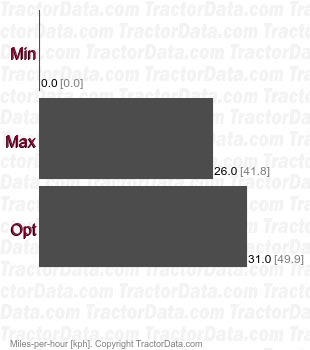

8235R AutoPowr infinitely variable transmission (IVT) speeds
