Massey Ferguson 6480


Massey Ferguson 6480 tractor photo
2004 - 2012
Model year
6400 Series
Row-Crop tractor
Series map:
6475
6480
6485
135.0hp
145.0hp
160.0hp
Production
ManufacturerMassey Ferguson
Row-Crop tractor
Original price$77,619 (2009 2WD )
$86,884 (2009 4WD )
Variants
6480Dyna-6
7480Dyna-VT
Massey Ferguson 6480 Engines
Perkins 6.6L 6-cyl diesel
SisuDiesel 6.6L 6-cyl diesel
Fuel tank70 gal
264.9 L
Engine details ...
Massey Ferguson 6480 Power
Engine (gross)145 hp
108.1 kW
PTO (claimed)120 hp
89.5 kW
Drawbar (tested)97.1 hp
72.4 kW
PTO (tested)147.2 hp
109.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
Cab standard with air-conditioning.
Hydraulics
Typeclosed center pressure flow compensating (PFC)
Pressure2900 psi
200.0 bar
Valves2 to 4
Total flow29 gpm
109.8 lpm
Tractor hitch
Rear TypeII
Controllower-link draft sensing
Rear lift (at 24"/610mm)9391 lbs
4259 kg
Front Hitchoptional
Front lift8,800 lbs
3991 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
 540/540E/1000 OptOptional
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase111.3 inches
282 cm
Weight12800 to 13710 pounds
Front tire10.00x16
Rear tire18.4R38 (2WD)
Full dimensions and tires ...
6480 Serial Number Location

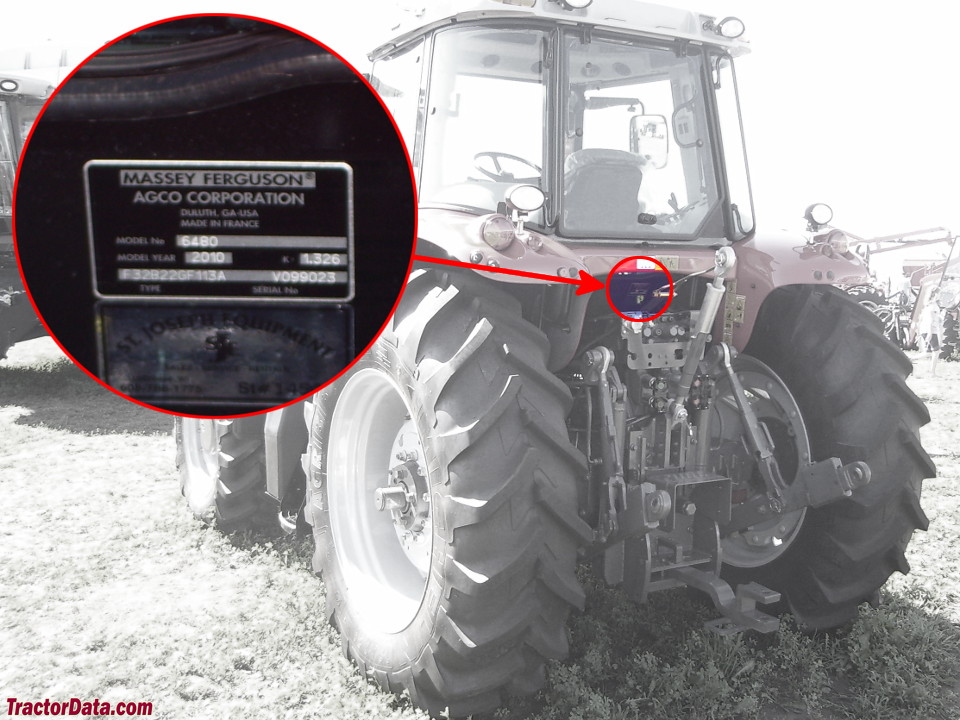

Massey Ferguson 6480 serial number location
Serial number plate on the rear of the Massey Ferguson 6480, above the three-point hitch.
Electrical
Groundnegative
Charging systemalternator
Charging amps120
 150 OptOptional
Batteries2
Battery CCA600
Battery volts12
References
6480 references literature
6400/7400 Series published in 2010, by Massey Ferguson
