Massey Ferguson 6480 Tests


Massey Ferguson 6480 tractor photo
2004 - 2012
Model year
6400 Series
Row-Crop tractor
Series map:
6475
6480
6485
135.0hp
145.0hp
160.0hp
Tractor Tests
OECD 2536: diesel 24-speed 4WD
OECD 6480: Sisu diesel 24-speed 4WD
OCED Tractor Test 2536
6480 fuel use from test 698
OCED Tractor Test 2536
Diesel 24-speed 4WD
August 2009 - October 2009,
Link: OCED Tractor Test 2536 file
PTO performance
Max power146.3 hp
109.1 kW
Fuel use8.3 gal/hour
31.4 l/hour
Power at rated engine speed132.5 hp
98.8 kW
Fuel use8.2 gal/hour
31.0 l/hour
Power at rated PTO speed144.8 hp
108.0 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power95.5 hp
71.2 kW
Fuel use7.7 gal/hour
29.1 l/hour
Gear 3A used for power test.
Max pull12,925 lbs
5862 kg
Gear 1D used for pull test.
OCED Tractor Test 6480

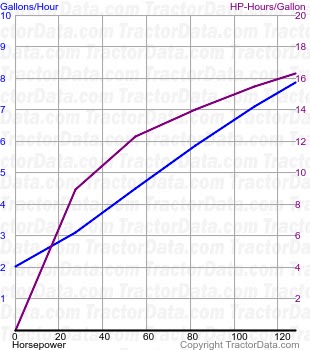

6480 fuel use from test 774
OCED Tractor Test 6480
Sisu diesel 24-speed 4WD
November 2007 - January 2008,
Link: OCED Tractor Test 6480 file
PTO performance
Max power147.2 hp
109.8 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated engine speed127.8 hp
95.3 kW
Fuel use7.9 gal/hour
29.9 l/hour
Power at rated PTO speed143.9 hp
107.3 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power97.1 hp
72.4 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 3A used for power test.
Max pull13265 lbs
6017 kg
Gear 1D used for pull test.
