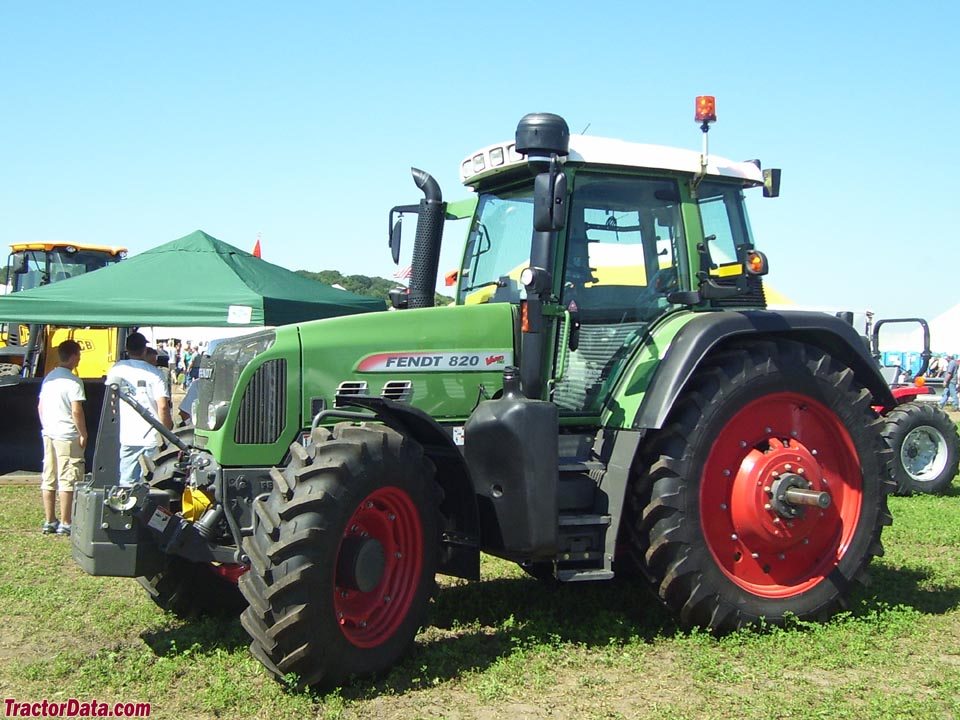

Fendt 820 Vario
| Production |
| Manufacturer | Fendt
|
| Built in Marktoberdorf, Germany |
| Fendt 820 Vario Power |
| Engine (gross) | 207 hp
154.4 kW
|
| Engine (net) | 190 hp
141.7 kW
|
| Engine (max) | 212 hp
158.1 kW
|
| PTO (claimed) | 175 hp
130.5 kW
|
| Mechanical |
| Four-wheel drive |
| Wet discs brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | load sensing
|
| Pressure | 2,900 psi
200.0 bar
|
| Valves | 3 or 4
|
| Total flow | 29.1 gpm
110.1 lpm
|
| Tractor hitch |
| Rear lift | 13,345 lbs
6053 kg
|
| Front lift | 5,520 lbs
2503 kg
|
| Power Take-off (PTO) |
| Rear PTO Type | 540/540E/1000
|
| Front PTO Type | 1000 (optional)
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 200
|
| Battery CCA | 1020
|
| Battery volts | 12
|
| Battery AH | 170
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 21, 2022 |
