| | 1984 - 1985 |
| 96 Series | | Row-Crop tractor |
|
Series map:
1896
2096
105.6hp*
128.9hp*
*Estimated engine power for comparison only.
Note: the J.I. Case model 2096 is the same as the CaseIH 2096. The following data is from the 2096 listing. |
| Transmission |
| Type | three-speed power shift
|
| Gears | 12 forward and 3 reverse
|
| Oil capacity | 100 qts
94.6 L
|
| Three power shift gears, plus reverse, in four ranges. Reverse is not operable in range four. |

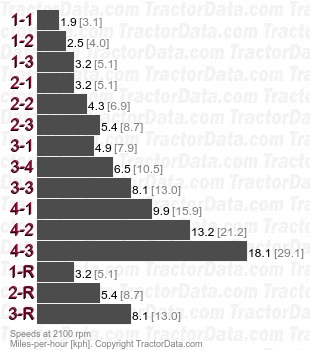

| Speeds |
| With 18.4x38 rear tires. |
|
