| | 1984 - 1985 |
| 96 Series | | Row-Crop tractor |
|
Series map:
1896
2096
105.6hp*
128.9hp*
*Estimated engine power for comparison only.
Note: the J.I. Case model 1896 is the same as the CaseIH 1896. The following data is from the 1896 listing. |
| Engine Detail |
| CDC |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 359 ci
5.9 L
|
| Bore/Stroke | 4.016x4.724 inches
102 x 120 mm
|
| Air cleaner | dual dry elements
|
| Compression | 17.5:1
|
| Rated RPM | 2100
|
| Idle RPM | 800-2250
|
| Starter volts | 12
|
| Oil capacity | 16 qts
15.1 L
|
| Coolant capacity | 22 qts
20.8 L
|

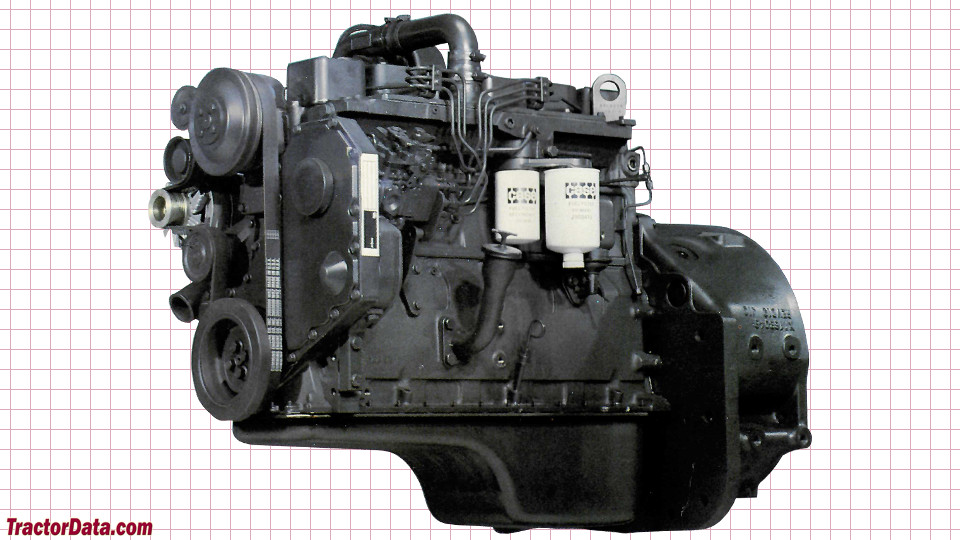

| J.I. Case 1896 Engine |
 |
