John Deere 5090GF
|
|
| Production | |
| Distributor | John Deere |
| Manufacturer | Agritalia |
| Orchard/Vineyard tractor | |
| Built in Rovigo, Italy | |
| John Deere 5090GF Engine | |
| John Deere 4.5L 4-cyl diesel | |
| Fuel tank | 40.2 gal 152.2 L |
 Engine details ... | |
| John Deere 5090GF Transmissions | |
| 12-speed | |
| 24-speed | |
 Transmission details ... |
| John Deere 5090GF Power | |
| Engine | 90 hp 67.1 kW |
| Mechanical | |
| Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering | hydrostatic power |
| Wet disc brakes | |
| ROPS (2-post); Cab optional. | |

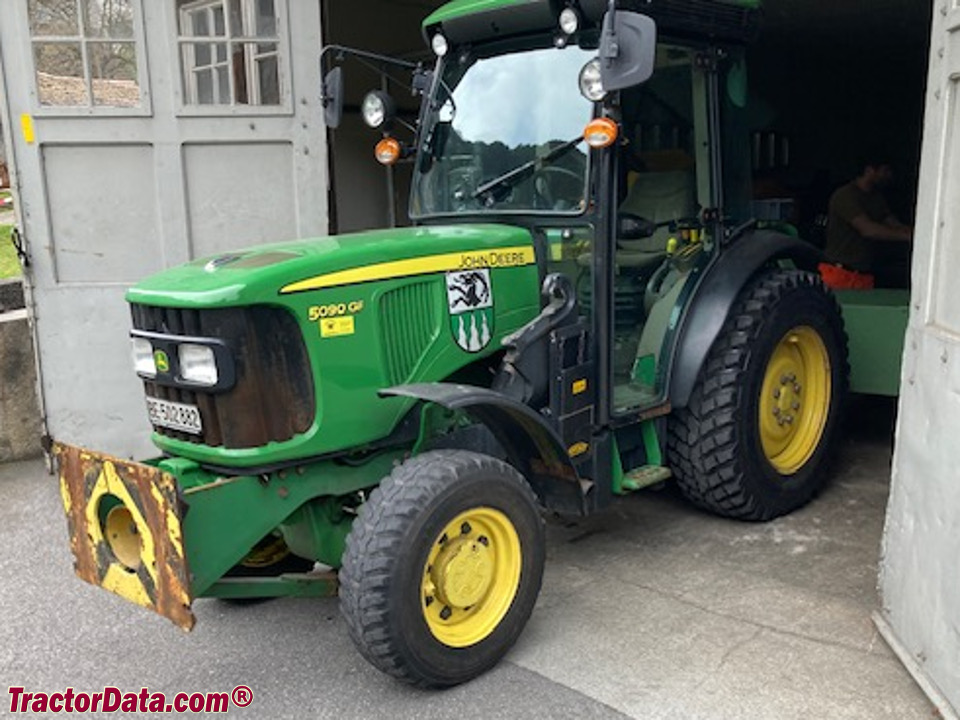

| Photos | |
 | |
 John Deere 5090GF photos... | |
| Hydraulics | |
| Pressure | 2700 psi 186.2 bar |
| Pump flow | 11.9 gpm 45.0 lpm |
| 15.6 gpm (optional) 59.0 lpm | |
| Total flow | 18.9 gpm 71.5 lpm |
| 22.3 gpm (optional) 84.4 lpm | |
| 27.6 gpm (optional) 104.5 lpm | |
| Steering flow | 6.5 gpm 24.6 lpm |
| Steering press. | 1900 psi 131.0 bar |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift | 5,845 lbs 2651 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540/540E/ground |
| 540/1000/ground | |
| Dimensions & Tires | |
| Wheelbase | 85 inches 215 cm |
| Weight | 5776 to 6460 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 |
| 95 (cab) | |
| Battery volts | 12 |
| Battery AH | 100 |
| References | |
 | |
| 5 Series Speciality tractors published in 2009, by John Deere |
