John Deere 5090GF Engine


John Deere 5090GF tractor photo
2009 - 2013
5G Series
Orchard/Vineyard tractor
Agritalia built
Series map:
5080GF
5090GF
5100GF
59.7kw
67.1kw
74.6kw
Engine Detail
John Deere 4045HAT81
turbocharged aftercooled diesel
4-cylinder
liquid-cooled
Displacement275.5 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage IIIA
Power90 hp
67.1 kW
Compression19.0:1
Rated RPM2300
Torque269.2 lb-ft
365.0 Nm
Torque RPM1600
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power3.8 hp
2.8 kW
Coolant capacity11 qts
10.4 L
 13.7 qts (cab)
13.0 L
Coolant change2000 h
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

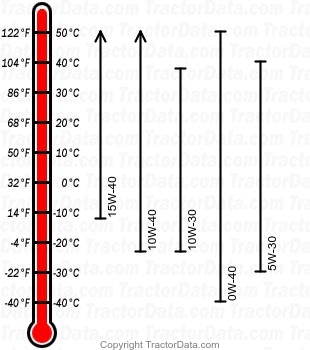

5090GF diesel engine oil chart
Oil capacity8.5 qts
8.0 L
Oil change500 h
