Tractors > John Deere > 5100M

John Deere 5100M Engine



John Deere 5100M tractor photo
2009 - 2013
5M Series
Utility tractor
Series map:
5090M
5100M
67.1kw
74.6kw
Engine Detail
John Deere 4045HL286
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier III
Rated Power (gross)100 hp
74.6 kW
Maximum Power (gross)102 hp
76.1 kW
Rated RPM2200
Idle RPM875-2350
Operating RPM1500-2200
Torque2888 lb-ft
3916.1 Nm
Torque RPM1600
Firing order1-3-4-2
Starterelectric
Starter volts12
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm

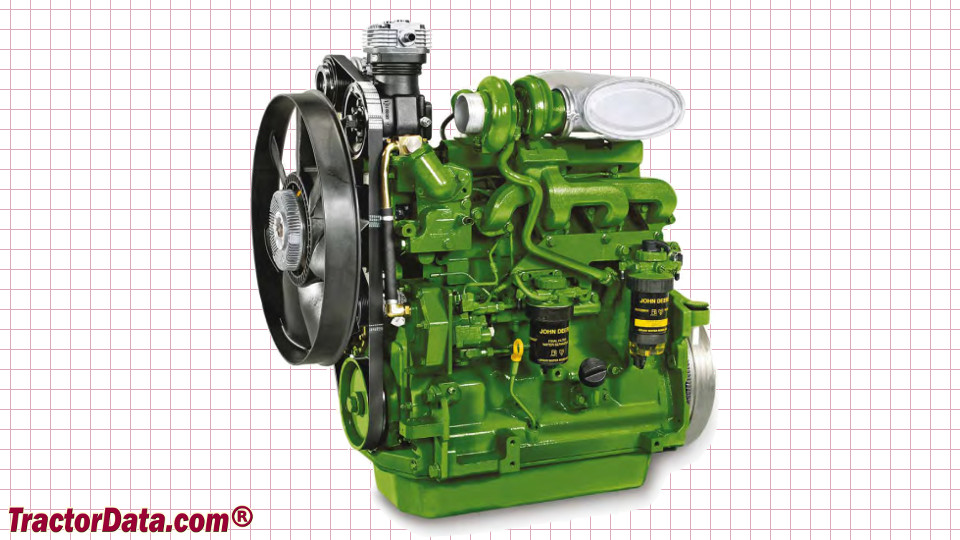

John Deere 5100M Engine
John Deere 5100M engine image
