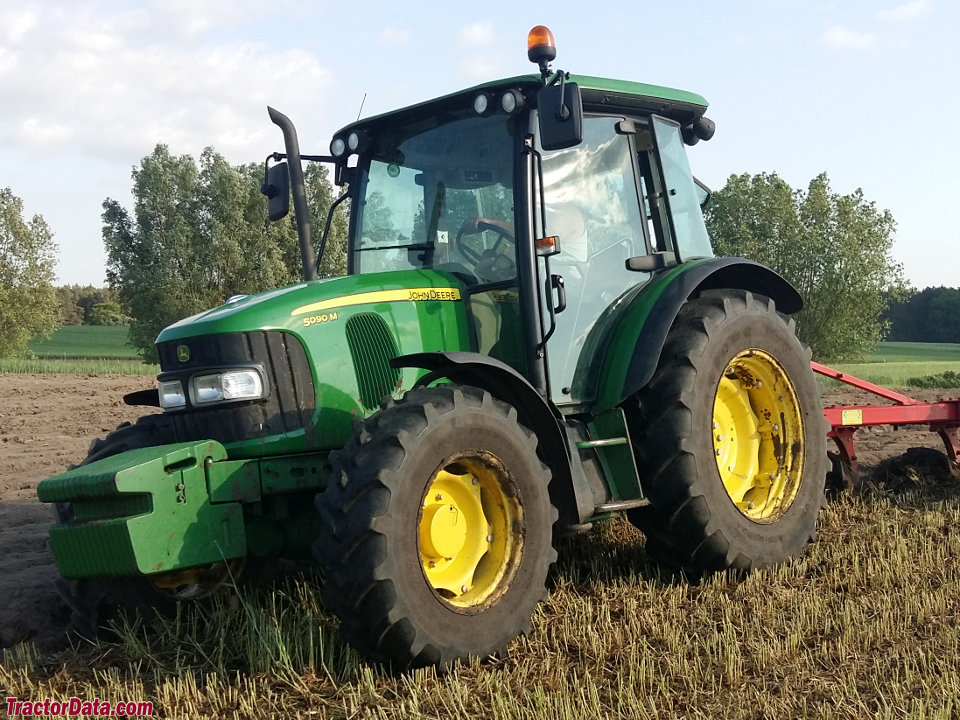

John Deere 5090M
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| John Deere 5090M Engine | |
| John Deere 4.5L 4-cyl diesel | |
 Engine details ... |
| John Deere 5090M Transmissions | |
| 32-speed two-speed power shift | |
| 16-speed power shuttle | |
| 16-speed partially synchronized | |
 Transmission details ... |
| John Deere 5090M Power | |
| Engine (gross) | 90 hp 67.1 kW |
| Engine (max) | 91.5 hp 68.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | electro-hydraulic rear |
| Steering | hydrostatic power |
| Wet disc brakes | |
| Trailer brakes | hydraulic *Optional. |
| pneumatic *Optional. | |
| Cab standard. Optional air-conditioning. | |
| Photos | |
 | |
 John Deere 5090M photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2901 psi 200.0 bar |
| Rear valves | 3 *Maximum |
| Mid valves | 2 *Maximum |
| Pump flow | 19.55 gpm 74.0 lpm |
| 24.8 gpm*Optional. 93.9 lpm | |
| Tractor hitch | |
| Rear Type | II |
| Control | lower-link draft control *Mechanical standard, electronic optional. |
| Rear lift (at ends) | 8093 lbs 3670 kg |
| Front Hitch | II OptOptional |
| Front lift (at ends) | 6519 lbs 2957 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet discs |
| Rear PTO Type | 540/540E/ground |
| 540/540E | |
| 540/540E/1000 | |
| Engine RPM | 540@2100 |
| 540E@1645 | |
| 1000@2100 | |
| Front PTO | independent OptOptional |
| Clutch | electro-hydraulic wet discs |
| Front PTO Type | 1000 |
| Engine RPM | 1000@2100 |
| Dimensions & Tires | |
| Wheelbase | 88.6 inches 225 cm |
| Weight | 8157 lbs 3700 kg |
| Front tire | 13.6R24 |
| Rear tire | 16.9R34 |
 Full dimensions and tires ... | |
| John Deere 5090M attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
| References | |
 | |
| 5 Series published in 2009, by John Deere |
