John Deere 5090M Transmission


John Deere 5090M tractor photo
2009 - 2013
5M Series
Utility tractor
Series map:
5080M
5090M
5100M
59.7kw
67.1kw
74.6kw
Transmission options
32-speed two-speed power shift
16-speed power shuttle
16-speed partially synchronized
Transmission
TransmissionJohn Deere PowrReverser Plus
Typetwo-speed power shift
Gears32 forward and 16 reverse
Clutchelectro-hydraulic wet disc
Four gears (1-4) in four ranges (A-D) with left hand power shuttle lever. Push-button high/low power shift in each gear. Gear shifts (1-4) are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.

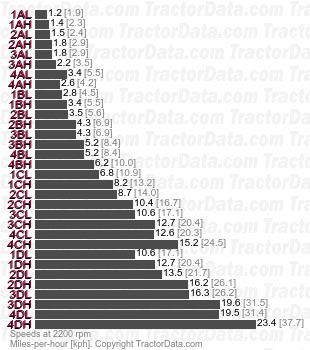

Speeds
With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds.
5090M PowrReverser Plus two-speed power shift speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepower shuttle
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four synchronized gears (1-4) in four ranges (A-D) with left-hand power shuttle lever. Tractor must be stopped, and clutch used, to shift ranges.

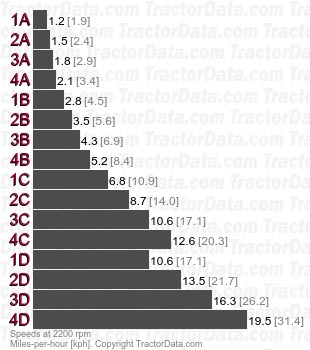

Speeds
With 420/85R30 rear tires and 30 kph option. Reverse speeds are 10% faster than forward speeds.
5090M PowrReverser power shuttle speeds
Transmission
TransmissionJohn Deere SyncReverser
Typepartially synchronized
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four synchronized gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Clutch must be used to shift directions. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds.
5090M SyncReverser partially synchronized speeds
