| | 2009 - 2013 |
| 5M Series | | Utility tractor |
|
| Transmission options |
| 32-speed two-speed power shift |
| 16-speed power shuttle |
| 16-speed partially synchronized |
| Transmission |
| Transmission | John Deere PowrReverser Plus
|
| Type | two-speed power shift
|
| Gears | 32 forward and 16 reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four gears (1-4) in four ranges (A-D) with left hand power shuttle lever. Push-button high/low power shift in each gear. Gear shifts (1-4) are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift ranges. |

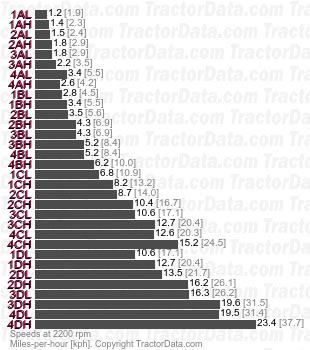

| Speeds |
| With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds. |
|
| Transmission |
| Transmission | John Deere PowrReverser
|
| Type | power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four synchronized gears (1-4) in four ranges (A-D) with left-hand power shuttle lever. Tractor must be stopped, and clutch used, to shift ranges. |

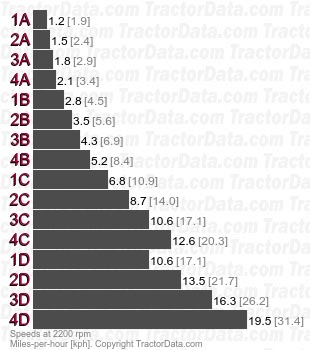

| Speeds |
| With 420/85R30 rear tires and 30 kph option. Reverse speeds are 10% faster than forward speeds. |
|
| Transmission |
| Transmission | John Deere SyncReverser
|
| Type | partially synchronized
|
| Gears | 16 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four synchronized gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Clutch must be used to shift directions. Tractor must be stopped, and clutch used, to shift ranges. |
| Speeds |
| With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds. |
|
