Tractors > John Deere > 5080M

John Deere 5080M Engine



John Deere 5080M tractor photo
2009 - 2013
5M Series
Utility tractor
Series map:
5070M
5080M
5090M
52.2kw
59.7kw
67.1kw
Engine Detail
John Deere 4045HL286
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier III
Rated Power (gross)80 hp
59.7 kW
Maximum Power (gross)81.5 hp
60.8 kW
Rated RPM2200
Idle RPM875-2350
Operating RPM1500-2200
Torque249 lb-ft
337.6 Nm
Torque RPM1600
Firing order1-3-4-2
Starterelectric
Starter volts12
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm

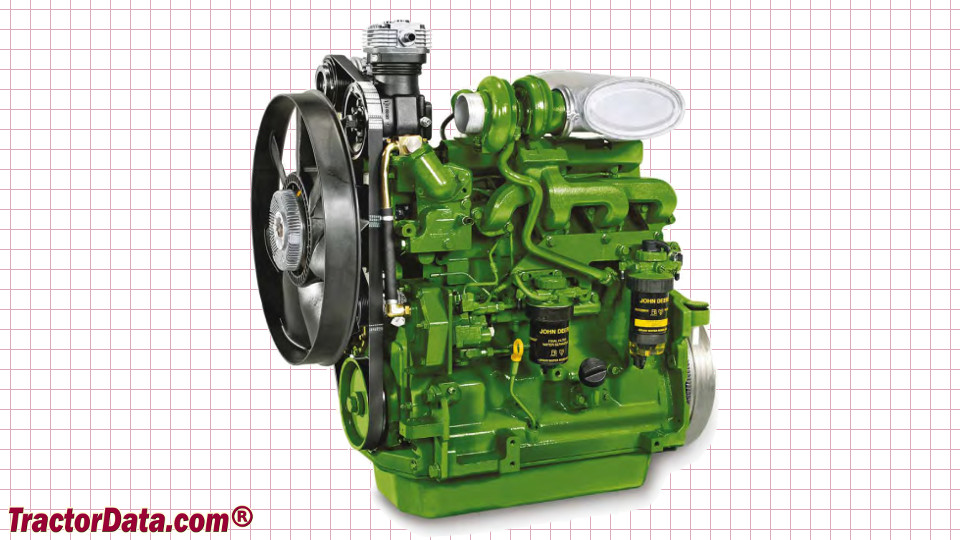

John Deere 5080M Engine
John Deere 5080M engine image
