John Deere 5100R Transmission


John Deere 5100R tractor photo
2009 - 2025
Model year
5R Series
Utility tractor
Series map:
5090R
5100R
67.1kw
74.6kw
Transmission options
16-speed four-speed power shuft
32-speed creeper
Transmission
TransmissionPowrQuad Plus
Typefour-speed power shuft
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever.
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

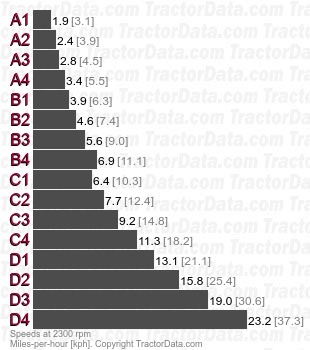

5100R PowrQuad Plus four-speed power shuft speeds
Transmission
TransmissionAutoQuad Plus
Typefour-speed power shuft
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. Programmable automatic gear shifting.
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.
5100R AutoQuad Plus four-speed power shuft speeds
Transmission
TransmissionPowerQuad Plus with underdrive
Typecreeper
Gears32 forward and reverse
Clutchelectro-hydraulic wet disc
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

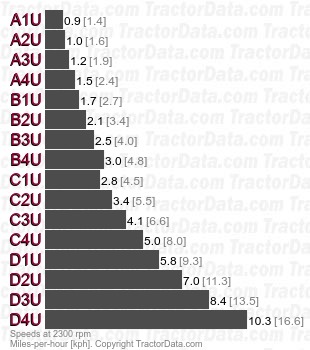

5100R PowerQuad Plus with underdrive creeper speeds
Transmission
TransmissionAutoQuad Plus with underdrive
Typecreeper
Gears32 forward and reverse
Clutchelectro-hydraulic wet disc
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.
5100R AutoQuad Plus with underdrive creeper speeds
