John Deere 5100R Engine


John Deere 5100R tractor photo
2009 - 2025
Model year
5R Series
Utility tractor
Series map:
5090R
5100R
67.1kw
74.6kw
Engine Detail
John Deere 4045HL284
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier III/Stage IIIa
Power100 hp
74.6 kW
Fuel systemhigh-pressure common rail
Rated RPM2300
Firing order1-3-4-2
Starterelectric
Starter volts12
Oil capacity20.6 qts
19.5 L
Oil change500 h
Coolant capacity29.6 qts
28.0 L
Coolant change1500 h
John Deere 5100R Engine

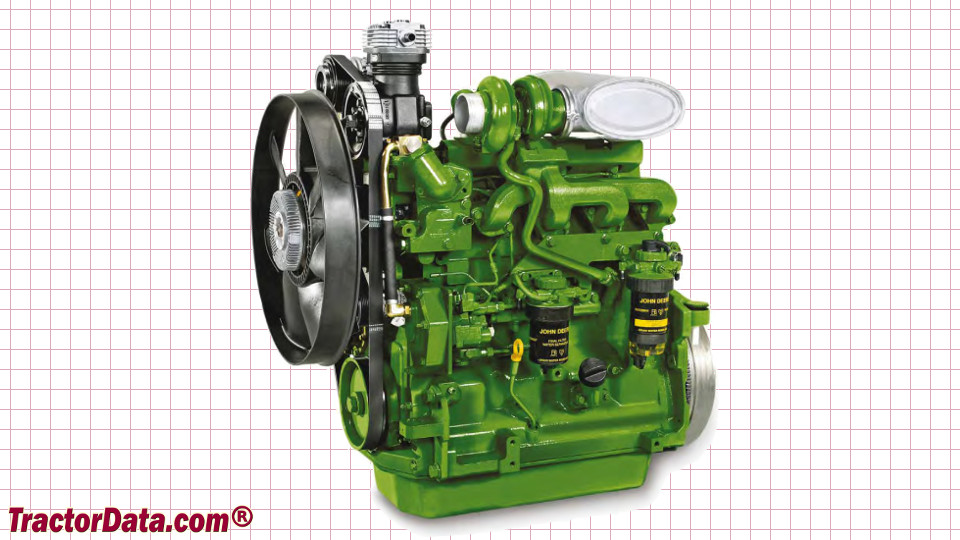

John Deere 5100R engine image
