Tractors > John Deere > 5080R

John Deere 5080R Transmission



John Deere 5080R tractor photo
2009 - 2016
5R Series
Utility tractor
Series map:
5080R
5090R
59.7kw
67.1kw
Transmission options
16-speed four-speed power shuft
32-speed creeper
Transmission
TransmissionPowrQuad Plus
Typefour-speed power shuft
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever.
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

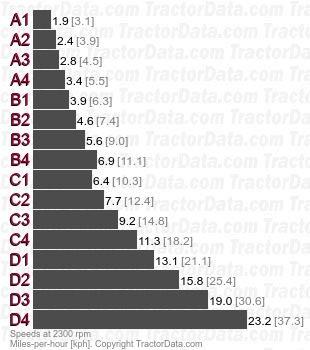

5080R PowrQuad Plus four-speed power shuft speeds
Transmission
TransmissionAutoQuad Plus
Typefour-speed power shuft
Gears16 forward and reverse
Clutchelectro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. Programmable automatic gear shifting.
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.
5080R AutoQuad Plus four-speed power shuft speeds
Transmission
TransmissionPowerQuad Plus with underdrive
Typecreeper
Gears32 forward and reverse
Clutchelectro-hydraulic wet disc
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

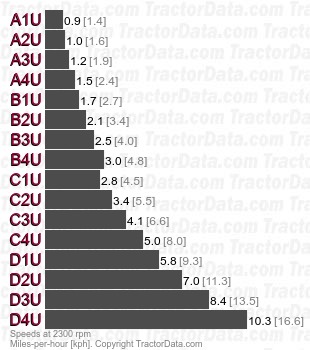

5080R PowerQuad Plus with underdrive creeper speeds
Transmission
TransmissionAutoQuad Plus with underdrive
Typecreeper
Gears32 forward and reverse
Clutchelectro-hydraulic wet disc
Speeds
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.
5080R AutoQuad Plus with underdrive creeper speeds
