Tractors > John Deere > 5820

John Deere 5820 Engine



John Deere 5820 tractor photo
2003 - 2008
Utility tractor
Series map:
5720
5820
59.7kw
65.6kw
Engine Detail
John Deere 4045TL274
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage II
Power88 hp
65.6 kW
Rated RPM2300
Torque250 lb-ft
339.0 Nm
Torque RPM1500
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity14.3 qts
13.5 L
Coolant change3000 h
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

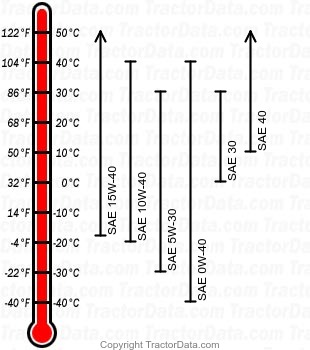

5820 diesel engine oil chart
Oil capacity13.7 qts
13.0 L
Oil change500 h
