John Deere 5620 Engine


John Deere 5620 tractor photo
2003 - 2008
Utility tractor
Series map:
5620
5720
53.7kw
59.7kw
Engine Detail
John Deere 4045DL270
diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage II
Power72 hp
53.7 kW
Rated RPM2300
Torque206 lb-ft
279.3 Nm
Torque RPM1500
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity14.3 qts
13.5 L
Coolant change3000 h
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

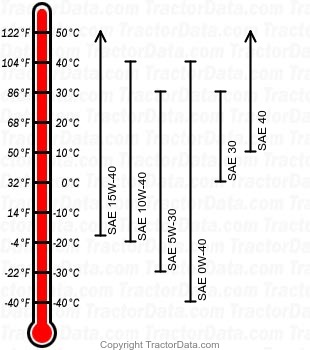

5620 diesel engine oil chart
Oil capacity13.7 qts
13.0 L
Oil change500 h
