John Deere 6410S Transmission


John Deere 6410S tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series map:
6310S
6410S
6510S
99.0hp
104.0hp
114.0hp
Transmission options
12-speed fully synchronized
16-speed power shuttle
16-speed partial power shift
38-speed four-speed power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Oil capacity54.8 qts
51.9 L
Oil type
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Visocosity HY-GARD
Three gears, plus reverse, in four ranges.
Speeds
With 18.4-30 rear tires.

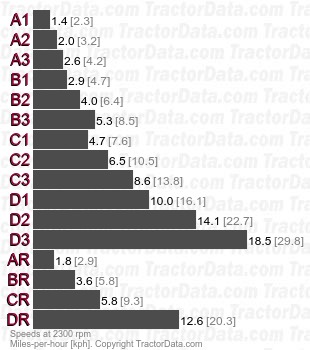

6410S SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere SyncroPlus Power Reverser
Typepower shuttle
Gears16 forward and reverse
Four synchronized gears, plus reverse, in four ranges with power shuttle.
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Oil capacity51.6 qts
48.8 L
Oil type
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Visocosity HY-GARD
Four power shift gears in four synchronized ranges, with reverser.
Speeds
With 18.4-30 rear tires.

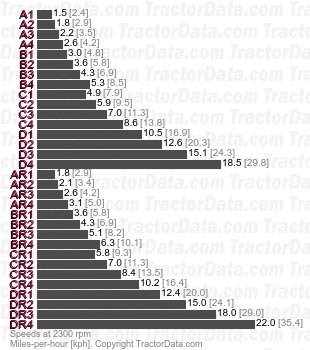

6410S PowrQuad partial power shift speeds
Transmission
TransmissionPowrQuad Creeper
Typefour-speed power shift
Gears38 forward and reverse
Creeper option adds an additional low-speed for ranges A, B, and C.
Speeds

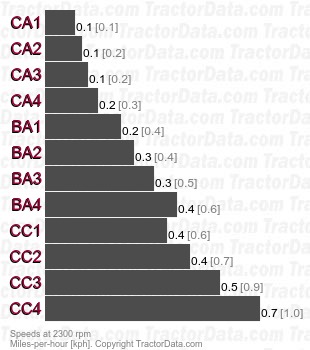

6410S PowrQuad Creeper four-speed power shift speeds
