| 1999 - 2002 |
6000 TEN Series | Orchard/Vineyard tractor |
|
Transmission options |
12-speed fully synchronized |
16-speed power shuttle |
16-speed partial power shift |
38-speed four-speed power shift |
Transmission |
Transmission | John Deere SyncroPlus
|
Type | fully synchronized
|
Gears | 12 forward and 4 reverse
|
Oil capacity | 54.8 qts 51.9 L
|
Oil type | -10oF [-23oC]↑ | : JD HY-GARD | 86oF [30oC]↓ | : Low-Viscosity HY-GARD |
|
Three gears, plus reverse, in four ranges. |

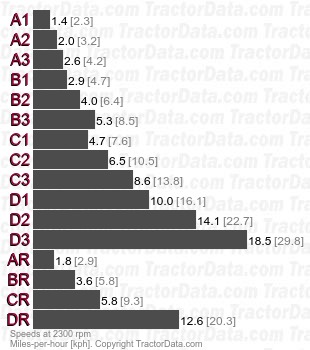

Speeds |
With 18.4-30 rear tires. |
|
Transmission |
Transmission | John Deere SynchroPlus Power Reverser
|
Type | power shuttle
|
Gears | 16 forward and reverse
|
Four synchronized in four ranges, with power reverser. |
Transmission |
Transmission | John Deere PowrQuad
|
Type | partial power shift
|
Gears | 16 forward and reverse
|
Oil capacity | 51.6 qts 48.8 L
|
Oil type | -10oF [-23oC]↑ | : JD HY-GARD | 86oF [30oC]↓ | : Low-Visocosity HY-GARD |
|
Four power shift gears in four synchronized ranges, with reverser. |

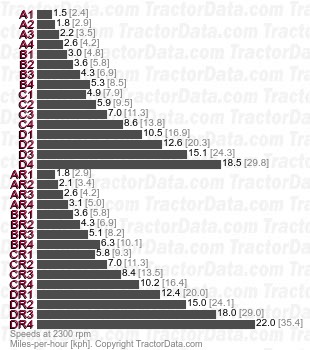

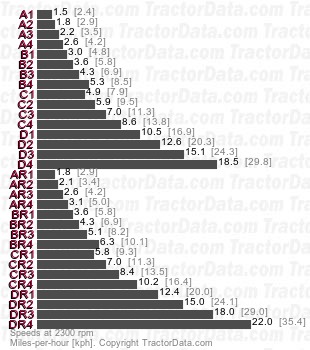

Speeds |
With 18.4-30 rear tires. |
|
Transmission |
Transmission | PowrQuad Creeper
|
Type | four-speed power shift
|
Gears | 38 forward and reverse
|
Creeper option adds an additional low-speed for ranges A, B, and C. |

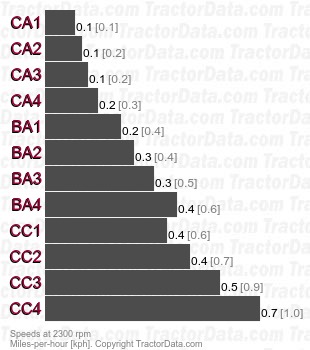

Speeds |
|
