John Deere 6210L Transmission


John Deere 6210L tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series map:
6110L
6210L
6310L
84.0hp
90.0hp
99.0hp
Transmission options
12-speed fully synchronized
16-speed power shuttle
16-speed partial power shift
38-speed four-speed power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Oil capacity54.8 qts
51.9 L
Oil type
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Visocosity HY-GARD
Three gears, plus reverse, in four ranges.
Speeds
With 18.4-30 rear tires.

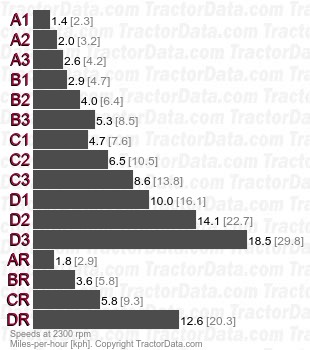

6210L SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere SynchroPlus Power Reverser
Typepower shuttle
Gears16 forward and reverse
Four synchronized in four ranges, with power reverser.
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Oil capacity51.6 qts
48.8 L
Oil type
-10oF [-23oC] : JD HY-GARD
86oF [30oC] : Low-Viscosity HY-GARD
Four power shift gears in four synchronized ranges, with reverser.
Speeds
With 18.4-30 rear tires.

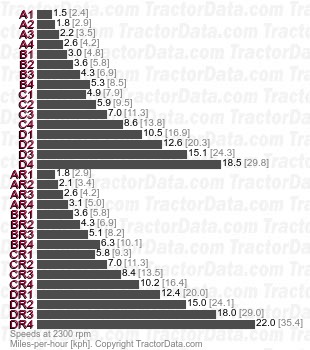

6210L PowrQuad partial power shift speeds
Transmission
TransmissionPowrQuad Creeper
Typefour-speed power shift
Gears38 forward and reverse
Creeper option adds an additional low-speed for ranges A, B, and C.
Speeds

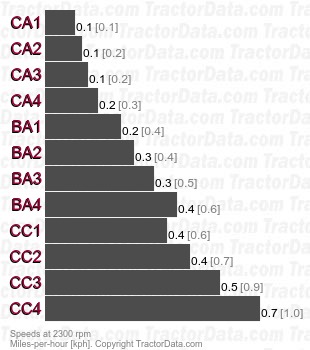

6210L PowrQuad Creeper four-speed power shift speeds
