John Deere 6210L Engine


John Deere 6210L tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series map:
6110L
6210L
6310L
84.0hp
90.0hp
99.0hp
Engine Detail
John Deere 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power (gross)90 hp
67.1 kW
Rated RPM2300
Torque274 lb-ft
371.5 Nm
Torque RPM1300
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity11.6 qts
11.0 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

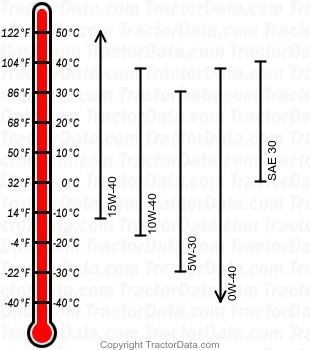

6210L diesel engine oil chart
Oil capacity12.8 qts
12.1 L
