J.I. Case VAC Transmission


J.I. Case VAC tractor photo
1942 - 1955
Row-Crop tractor
Series map:
VAC
18.9hp*
*Estimated engine power for comparison only.
Transmission
Typeunsynchronized gear
Gears4 forward and 1 reverse
Clutch228.6mm dry disc
Oil capacity28 qts
26.5 L
Oil type
32oF [0oC] : SAE140
32oF [0oC] : SAE90

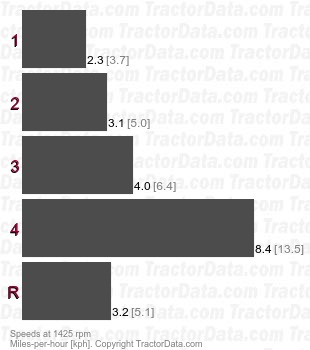

Speeds
With 10-28 rear tires.
VAC  unsynchronized gear speeds
