J.I. Case VAC Engine


J.I. Case VAC tractor photo
1942 - 1955
Row-Crop tractor
Series map:
VAC
18.9hp*
*Estimated engine power for comparison only.
Engine options
J.I. Case 2.0L 4-cyl distillate
J.I. Case 2.0L 4-cyl gasoline
Engine Detail
J.I. Case
distillate
4-cylinder
liquid-cooled
Displacement124 ci
2.0 L
Bore/Stroke3.25x3.75 inches
83 x 95 mm
Air cleaneroil bath
Compression5:1
Rated RPM1425
Firing order1-3-4-2
Starter volts6
Coolant capacity13 qts
12.3 L
SparkplugChampion 15A
 AC 87
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.014 inches (cold)
0.356 mm
Engine Oil

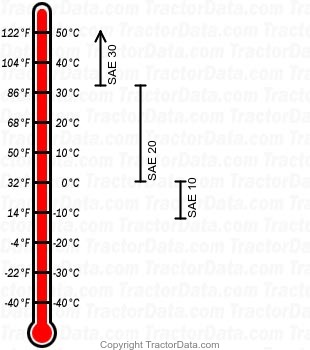

VAC distillate engine oil chart
Oil capacity4 qts
3.8 L
Engine Detail
J.I. Case
gasoline
4-cylinder
liquid-cooled
Displacement124 ci
2.0 L
Bore/Stroke3.25x3.75 inches
83 x 95 mm
Air cleaneroil bath
Compression6:1
Rated RPM1425
Firing order1-3-4-2
Starter volts6
Coolant capacity13 qts
12.3 L
SparkplugChampion 15A
 AC 87
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.014 inches (cold)
0.356 mm
Engine Oil
VAC gasoline engine oil chart
Oil capacity4 qts
3.8 L
