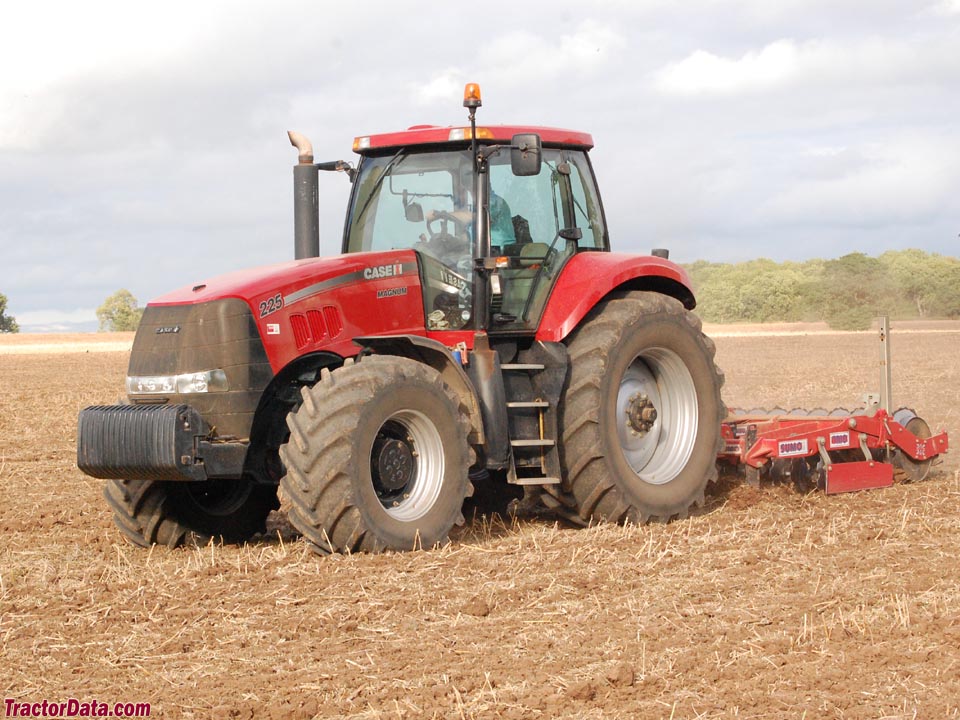

CaseIH Magnum 225
| | 2009 - 2013 |
|
| Magnum Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | CaseIH
|
| Row-Crop tractor |
| Built in Racine, Wisconsin, USA |
| CaseIH Magnum 225 Power |
| Engine | 225 hp
167.8 kW
|
| PTO (claimed) | 195 hp
145.4 kW
|
| Drawbar (tested) | 171.98 hp
128.2 kW
|
| PTO (tested) | 214.87 hp
160.2 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Surveyor cab standard with air-conditioning. |
| Capacity |
| Fuel | 118 gal
446.6 L
|
| Hydraulic system | 26.5 gal
100.3 L
|
| Hydraulics |
| Type | Pressue Flow Compensated (PFC)
|
| Capacity | 26.5 gal
100.3 L
|
| Valves | 3 to 5
|
| Total flow | 39.6 gpm
149.9 lpm
|
| Tractor hitch |
| Rear Type | II/III
|
| Rear lift | 12,787 lbs
5800 kg
|
| | 15,873 lbs (optional)
7199 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| | 1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 150
|
| | 200 (optional)
|
| Battery volts | 12
|
| References |
 |
| Magnum Series Tractors published in 2011, by CaseIH |
| Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH |
