| | 2004 - 2008 |
| F Series | | Orchard/Vineyard tractor |
|
Series map:
F95
F105
70.8kw
73.1kw
| Transmission options |
| 15-speed mechanical shuttle |
| 15-speed power shuttle |
| 30-speed two-speed power shift |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 15 forward and reverse
|
| Clutch | 304mm mechanical dry disc
|
| Five gears in three ranges with mechanical shuttle. Also available with creeper range, providing 20 speeds. |

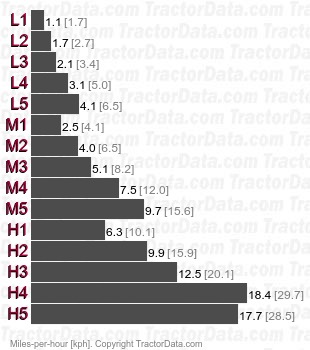

| Speeds |
| With 16.9R24 rear tires. Reverse speeds are 1% faster than forward. |
|
| Transmission |
| Type | power shuttle
|
| Gears | 15 forward and reverse
|
| Clutch | wet disc
|
| Five gears in three ranges with power shuttle. Also available with creeper range, providing 20 speeds. |
| Transmission |
| Type | two-speed power shift
|
| Gears | 30 forward and reverse
|
| Clutch | wet disc
|
| Five gears in three ranges with power shuttle and two-speed power shift in each gear. Also available with creeper range, providing 40 speeds. |

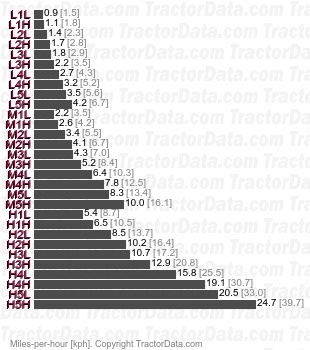

| Speeds |
| With 14.9R28 rear tires. Reverse speeds are 3% slower than forward. |
|
