Tractors > AGCO > RT155A

AGCO RT155A

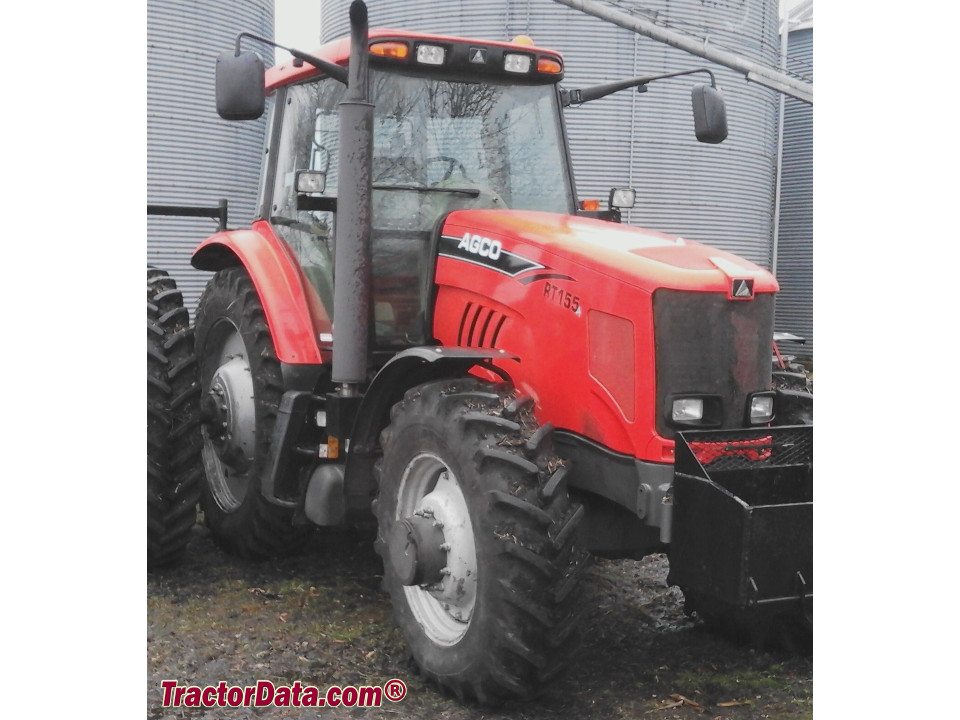

AGCO RT155A tractor photo
2006 - 2011
RT-A Series
Row-Crop tractor
Series map:
RT140A
RT155A
RT165A
170.0hp
185.0hp
200.0hp
Production
ManufacturerAGCO
Row-Crop tractor
Built in Beauvais, France
Original price$100,881 (2009 Auto-6 2WD )
$110,106 (2009 Auto-6 4WD )
$117,104 (2009 CVT 4WD )
The AGCO RT155A is similar to the Massey Ferguson 6495 and 7495.
AGCO RT155A Engine
SisuDiesel 6.6L 6-cyl diesel
Fuel tank100 gal
378.5 L
Engine details ...
AGCO RT155A Transmissions
32-speed partial power shift
24-speed partial power shift
continuously variable transmission
Transmission details ...
AGCO RT155A Power
Engine185 hp
138.0 kW
PTO (claimed)155 hp
115.6 kW
Drawbar (tested)136.0 hp
101.4 kW
PTO (tested)190.0 hp
141.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockfront and rear
Steeringhydrostatic power
Hydraulic wet disc brakes
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.
Photos
No photos of the AGCO RT155A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure flow compensated (PFC)
Pressure2900 psi
200.0 bar
Valves3 to 5
Total flow29 gpm
109.8 lpm
 39 gpmOptOptional
147.6 lpm
Tractor hitch
Rear Type3/3N
Controlelectronic position and lower-link draft control
Rear lift (at 24"/610mm)16,500 lbs
7484 kg
CVT Rear lift (at 24"/610mm)16,140 lbs
7321 kg
Front Hitch2/3 OptOptional
Front lift8,800 lbs
3991 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E/1000
Front PTOoptional
Front PTO Type1000
Dimensions & Tires
2WD Wheelbase118.6 inches
301 cm
4WD Wheelbase117.9 inches
299 cm
Weight14300 to 15100 pounds
Front tire10.00x16
Rear tire18.4R42 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
 150 OptOptional
Batteries2
Battery CCA550
Battery volts12
