AGCO RT155A Transmission


AGCO RT155A tractor photo
2006 - 2011
RT-A Series
Row-Crop tractor
Series map:
RT140A
RT155A
RT165A
170.0hp
185.0hp
200.0hp
Transmission options
32-speed partial power shift
24-speed partial power shift
continuously variable transmission
Transmission
TransmissionQuadraShift
Typepartial power shift
Gears32 forward and reverse
Clutchwet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.
Transmission
TransmissionAuto-6
Typepartial power shift
Gears24 forward and reverse
Clutchwet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.
Transmission
TransmissionPowerMaxx CVT
Typecontinuously variable transmission
Gearsinfinite forward and reverse (two-range)
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.
Speeds

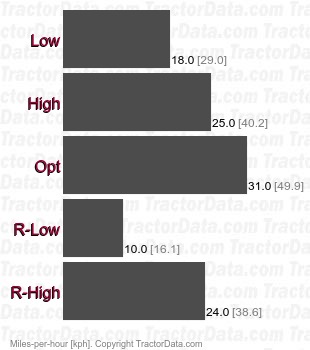

RT155A PowerMaxx CVT continuously variable transmission speeds
