Cub Cadet Sc2400
| | 2008 - 2011 |
| Sub-Compact Utility tractor | | Yanmar built |
|
| Production |
| Distributor | Cub Cadet
|
| Manufacturer | Yanmar
|
| Sub-Compact Utility tractor |
| Original price was $11,499 in 2009 |
| Variants |
| Sc2400 TD | includes 60-inch mid-mount mower
|

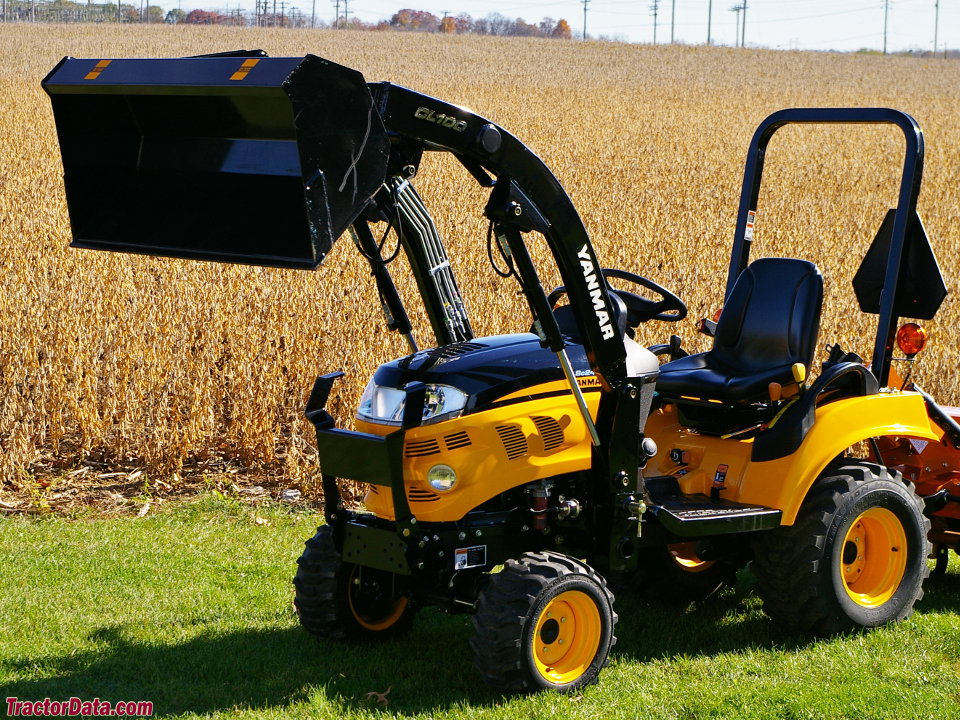

| Sc2400 TL | includes loader
|
| Sc3400 TLD | includes mower and loader
|
| Sc2450 | tractor backhoe
|
| Cub Cadet Sc2400 Power |
| Engine (gross) | 24 hp
17.9 kW
|
| Engine (net) | 20.4 hp
15.2 kW
|
| PTO (claimed) | 16.5 hp
12.3 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Steering | power
|
| Wet disc brakes |
| Two-post fixed ROPS standard. Optional steel cab. |
| Hydraulics |
| Type | open center
|
| Pump flow | 3.5 gpm
13.2 lpm
|
| Total flow | 7.1 gpm
26.9 lpm
|
| Steering flow | 3.6 gpm
13.6 lpm
|
| Tractor hitch |
| Rear Type | I (limited)
|
| Rear lift (at 24"/610mm) | 661 lbs
299 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@3111
|
| Mid PTO | independent
|
| Mid PTO Type | 2100 (SAE 16/32)
|
| Engine RPM | 2100@3338
|

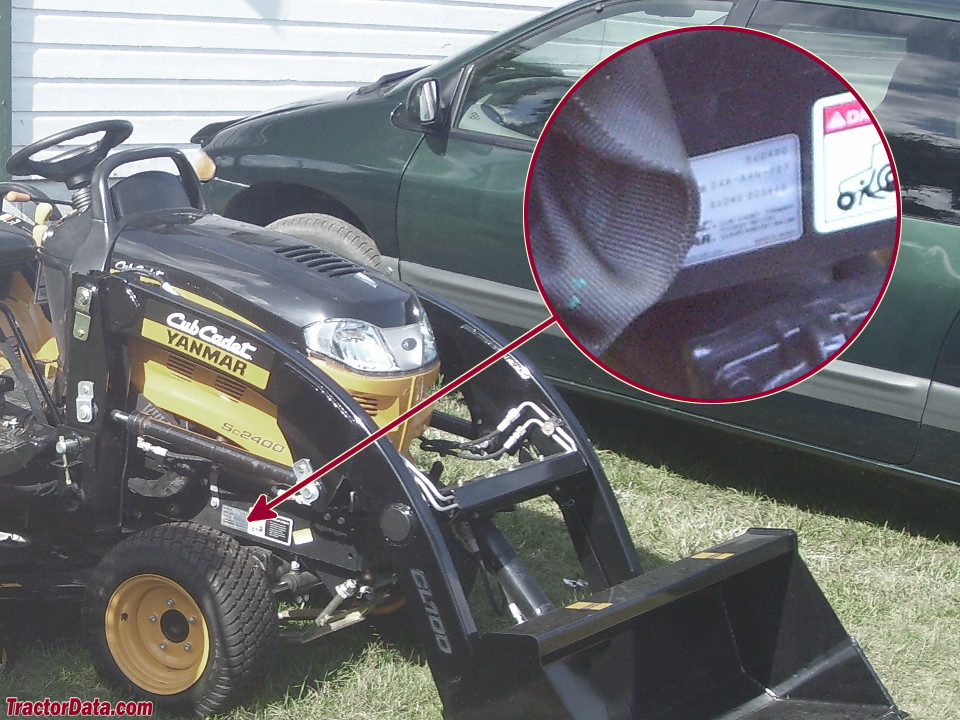

| Sc2400 Serial Number Location |
 |
| Serial number plate on the right side of the Sc2400 frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery volts | 12
|
| References |
 |
| Compact Tractors published in 2010, by Cub Cadet |
| Sc2400 Sub-Compact Tractor published in 2009, by Cub Cadet |
| Operator's Manual Sc2400 published in 2009, by Cub Cadet |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 18, 2023 |
