Farmall Super A-1
|
|
| Production | |
| Manufacturer | Farmall (a part of International Harvester) |
| Row-Crop tractor | |
| Total built | 1,672 |
| The Super A-1 used the C123 engine, instead of the C113 used in the Super A. There were no decals or other markings to indicate the larger engine, but the prefix on the serial number plate changed from FAA to FAA-1. | |
| Farmall Super A-1 Engine | |
| International Harvester 2.0L 4-cyl gasoline | |
| Fuel tank | 11 gal 41.6 L |
 Engine details ... | |
| Farmall Super A-1 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Farmall Super A-1 Power |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. |
| Photos | |
 | |
 Farmall Super A-1 photos... | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 71.1 inches 180 cm |
| Front tire | 5.00-15 |
| Rear tire | 9-24 |
 Full dimensions and tires ... | |

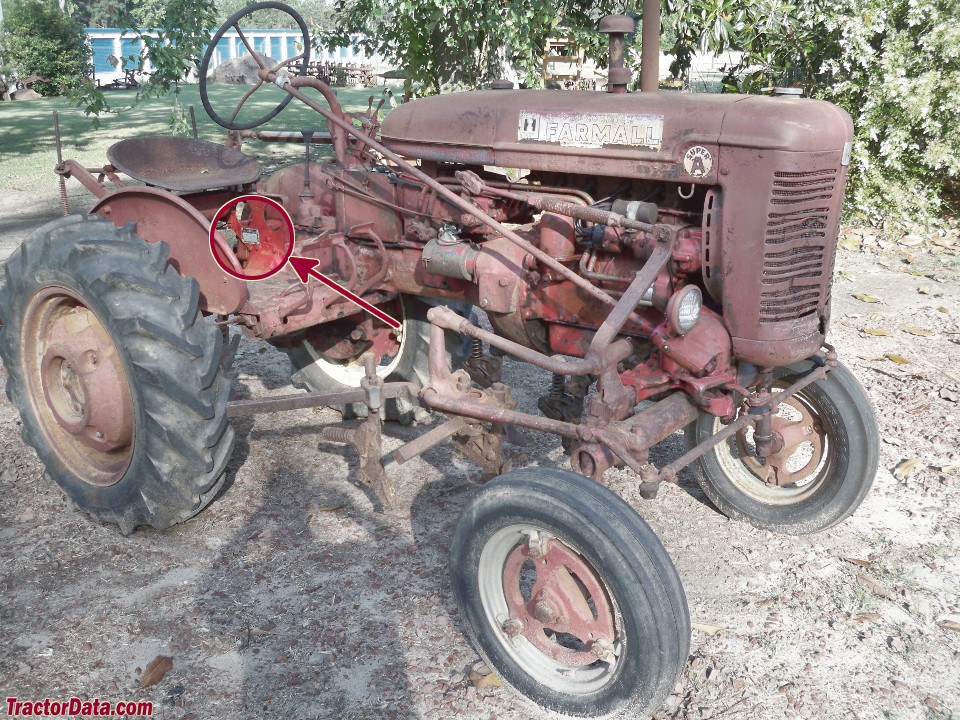

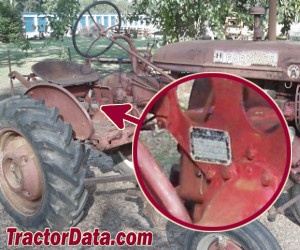

| Super A-1 Serial Number Location | |
 | |
| Right side of seat support. |
| Super A-1 Serial Numbers | |
| 1954 | 356001 |
| Final | 357958 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 8.5 inches 21 cm |
| Width | 6 inches 15 cm |
| Speed | 1157 ft/min 352.65 meters/min |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Battery volts | 6 |
| References | |
 | |
| Farmall Letter Series Tractors by Lee Klancher | |
| Operator's Manual Farmall Super A-1 and Super AV-1 Tractors (1004370R1) published in 1954 |
