New Holland T4050 Tests


New Holland T4050 tractor photo
2008 - 2011
T4000 Series
Utility tractor
Series map:
T4040
T4050
84.0hp
95.0hp
Tractor Tests
OECD 2460: diesel 12-speed 4WD
OECD 2457: diesel 16-speed 4WD
OCED Tractor Test 2460

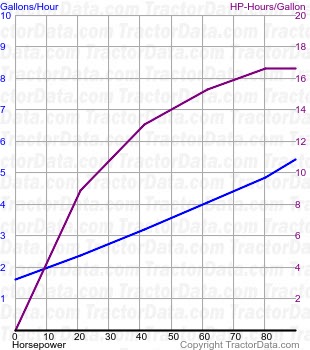

T4050 fuel use from test 725
OCED Tractor Test 2460
Diesel 12-speed 4WD
May 2008 - July 2008,
Link: OCED Tractor Test 2460 file
PTO performance
Power at rated engine speed89.7 hp
66.9 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed90.0 hp
67.1 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power73.7 hp
55.0 kW
Fuel use5.4 gal/hour
20.4 l/hour
Gear 3M used for power test.
Max pull6,355 lbs
2882 kg
Gear 2M used for pull test.
OCED Tractor Test 2457
T4050 fuel use from test 726
OCED Tractor Test 2457
Diesel 16-speed 4WD
May 2008 - July 2008,
Link: OCED Tractor Test 2457 file
PTO performance
Power at rated engine speed89.7 hp
66.9 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed89.0 hp
66.4 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power74.3 hp
55.4 kW
Fuel use5.3 gal/hour
20.1 l/hour
Gear 3MH used for power test.
Max pull7,250 lbs
3288 kg
Gear 2ML used for pull test.
